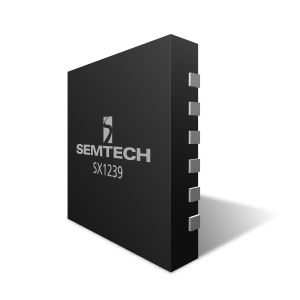

SX1239

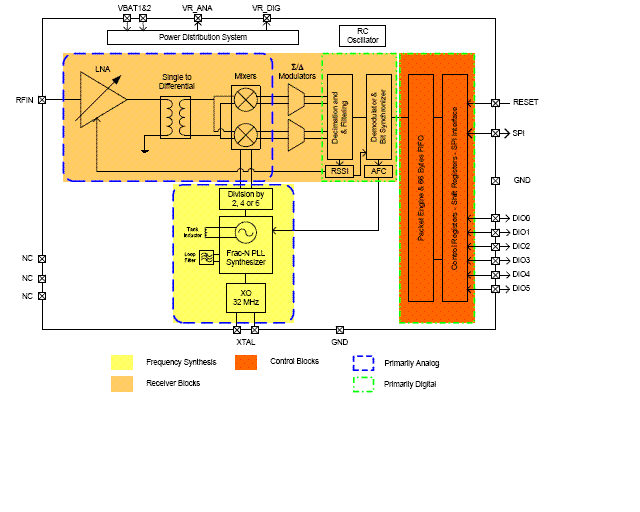

SX1239 是一款高度集成的射频接收器芯片,工作频率范围很广,包括 433、868 和 915 MHz 免授权 ISM(工业、科学和医学)频段。它具备高度集成的架构,在保持最大设计灵活性的同时,可最大程度减少外部元件的使用。
功能
- 灵敏度高:1.2 kbps 时低至 -120 dBm
- 高选择性:16 抽头 FIR 通道滤波器
- 防弹前端:IIP3 = -18dBm、IIP2 = +35dBm,80dB 阻断抗扰性,无图像频率响应
- 电流低:Rx = 16 mA,保持寄存器时为 100nA
- 在芯片的电压范围内能够提供恒定的射频性能
- FSK 比特率高达 300 kb/s
- 高度集成的合成器,分辨率 61 Hz
- FSK、GFSK、MSK、GMSK 和 OOK 解调
- 内置位同步器,可执行时钟恢复操作
- 输入同步文字识别
- 115 dB 以上动态范围 RSSI
- 自动射频感应与超快速 AFC
- 使用 CRC、AES-128 加密和 66 字节 FIFO 的封包引擎
- AEC-Q100 认证产品
- 内置温度传感器和低电量指示灯
- 自动读表
- 无线传感器网络
- 家庭和楼宇自动化
- 无线警报和安全系统
- 工业监控
应用
封装
- QFN 24
订购代码
- SX1239IMLTRT(3000 颗,卷带包装)
