Semtech 的 BlueRiver® 视听处理器可以完全集成到终端设备中,在视听源和显示器上实现本地 SDVoE 连接。ASIC 占用空间小、功耗低、成本低,不仅支持全新类别的 SDVoE 产品,而且有助于发展更广泛的 SDVoE 生态系统。通过终端设备集成,可大大降低系统成本和复杂性,从而实现制造商之间更好的互操作性。制造商可以迁移到完全集成的解决方案,同时仍具备与现有 SDVoE 产品的完全向后兼容性。由于 SDVoE API(SDVoE 核心的控制协议)的通用性,ASIC 与现有的 SDVoE 产品完全兼容。可以使用基于 ASIC 的设备扩充和升级基于 SDVoE 的安装,同时继续使用现有的软件控制系统,从而节省安装成本、降低停机时间。这样软件开发人员就可以专注于开发令人兴奋的新应用,因为他们知道当前的和新的 SDVoE 产品是完全可互操作的。

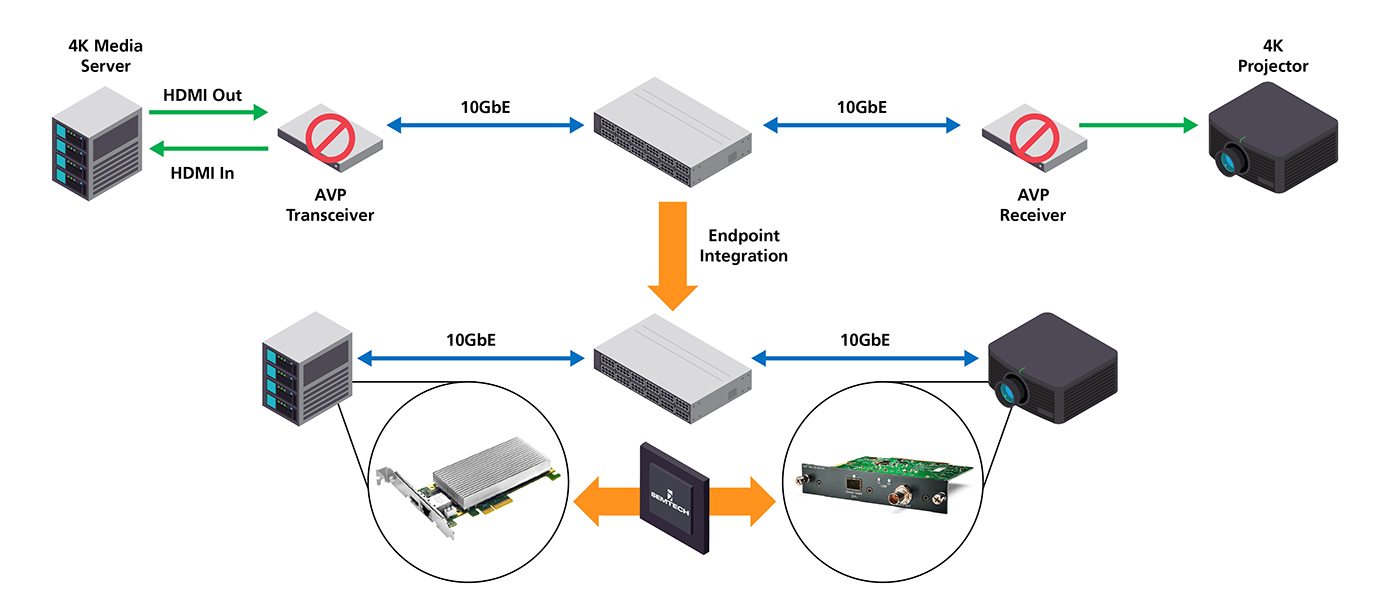

图 1.通过完全集成 Semtech 的 BlueRiver 视听处理器,可以在视听源和显示器上实现本地 SDVoE 连接。

带 AVP2000T 的盒子内部:用于 AV-over-IP 终端设备集成的可扩展解决方案

The AVP2000T is the flagship device in the BlueRiver product portfolio, providing true transceiver functionality for bidirectional HDMI in a single chip. This enables products such as media servers, which require both HDMI inputs and outputs, to connect to the 10Gb Ethernet SDVoE network using only one physical Ethernet connection, as shown in this diagram. Taking advantage of the full-duplex nature of Ethernet, the AVP2000T-based media server can be streaming uncompressed quality 4K60 video content to multiple displays, while also receiving and recording new or updated content at 4K60 from the network.

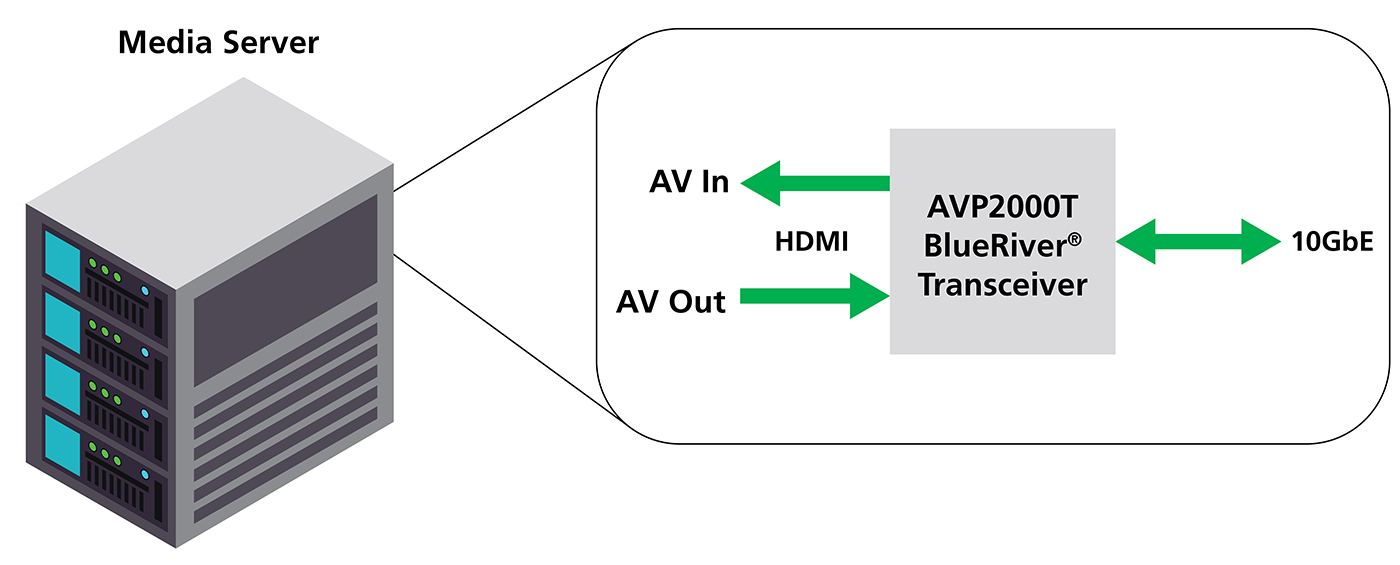

图 2. 借助 AVP200T 的双向功能,媒体服务器可以充分利用以太网的双工特性来传输和接收未压缩的 4K60 内容。

The AVP2000T is the flagship device in the BlueRiver product portfolio, providing true transceiver functionality for bidirectional HDMI in a single chip. This enables products such as media servers, which require both HDMI inputs and outputs, to connect to the 10Gb Ethernet SDVoE network using only one physical Ethernet connection, as shown in this diagram. Taking advantage of the full-duplex nature of Ethernet, the AVP2000T-based media server can be streaming uncompressed quality 4K60 video content to multiple displays, while also receiving and recording new or updated content at 4K60 from the network.

闪存 SPIXFI 10G以太网 PLL25MHz

图 3. AVP2000T 支持铜缆和光纤 10G 以太网连接,与标准 SFP+ 光模块配对时具有最高性能。

AVP2000T 的功率仅为 2.7W,可完全集成到基于 PC 的媒体服务器的 PCIe 卡上。如此图所示,只需要少数几个主要组件即可实现 HDMI 的同步输入和输出,双向高达 4K60 4:4:4。AVP2000T 支持铜缆和光纤 10G 以太网连接,但通过将器件与标准 SFP+ 光模块配对,可以实现最高性能的解决方案,传输距离为几百米到几十公里。
