概览

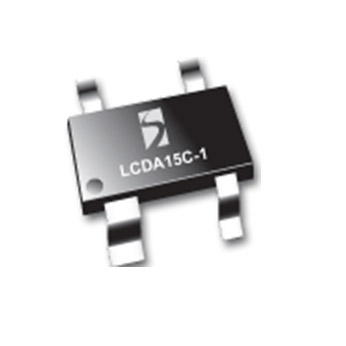

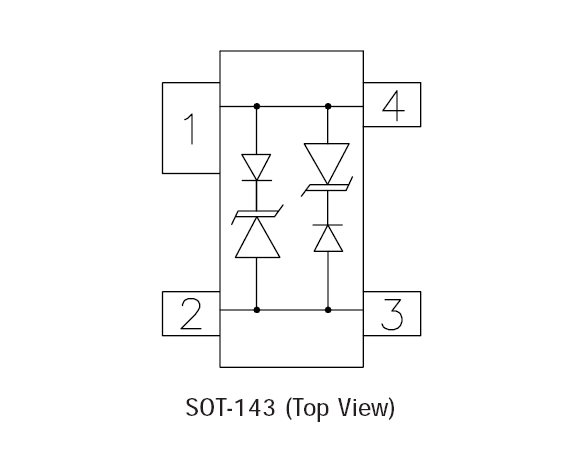

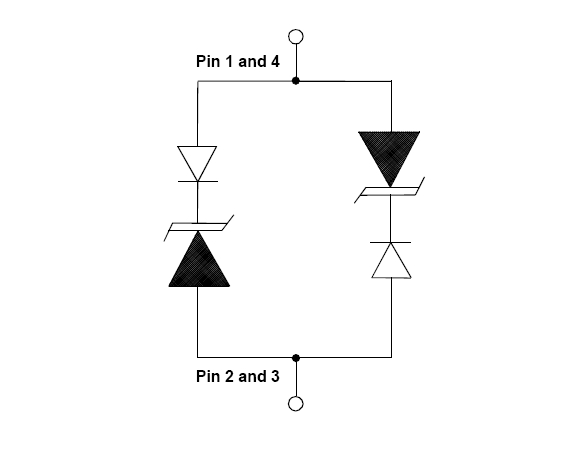

The LCDAxxC-1 is a low capacitance transient voltage suppressor (TVS) diode array. It is designed to protect sensitive CMOS ICs from the damaging effects of ESD and lightning. Each device will protect one line in common (line-to-ground) mode or one line pair in metallic (Line-to-line) mode.
功能
- 15 V operating voltage
- Protects one line pair
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
- 优化配置，可方便电路板布局
- Low capacitance (< 15 pF) for high-speed interfaces
- 钳位电压低
- 小漏电流
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| LCDA15C-1 Datasheet | 2019-11-06 | | |
应用
- ADSL interfaces
- RS-232, RS-422, V.90 interfaces
- Multi-protocol serial transceivers
- 高速数据线
- Portable electronics
- WAN/LAN equipment
- Wireless systems
