LCDA12C-8
The LCDAxxC-8 has been specifically designed to protect sensitive components which are connected to data and transmission lines from over voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- 12 V 15 V operating voltage
- Protects eight I/O lines
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
- Low capacitance for high-speed interfaces
- High surge capability
- 钳位电压低
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- Multi-mode transceiver protection
- WAN equipment:
- CSU/DSU
- Multiplexers
- Routers
- ISP equipment
- Customer premise equipment
- Protection for any of the following interfaces:
- RS-232 (V.28)
- RS-422 (V.11, X.21)
- RS-449 (V.11/V.10)
应用
封装

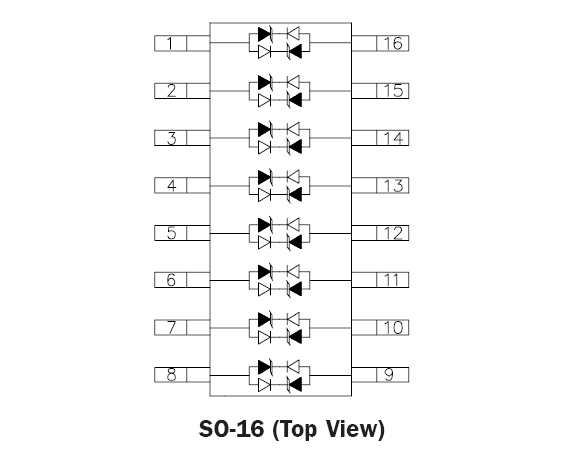

- SO-16
- 500 pcs. Tape & Reel
订购代码
- LCDA12C-8.TBT
