SRV05-4A
功能
- Protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 12A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects four I/O lines
- Low capacitance: 3pF typical
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- USB 2.0 Power and Data Line Protection
- Video Graphics Cards
- Monitors and Flat Panel Displays
- 数字视频接口 (DVI)
- 10/100 以太网
- Notebook Computers
- SIM Ports
- IEEE 1394 Firewire Ports
应用
封装

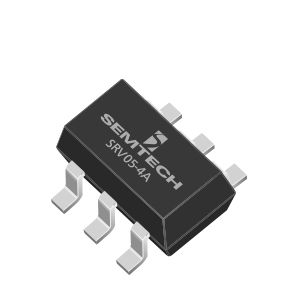

- SOT-23 6 Lead
订购代码
- SRV05-4ATCT
