SRV05-4
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SR series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- 为高速数据线路提供 ESD 防护，符合 IEC 61000-4-2 (ESD) 标准的 ±15kV（空气放电）和 ±8kV（接触放电），并符合 IEC 61000-4-4 (EFT) 40 A (5/50 ns) 和 IEC 61000-4-5（雷电）12 A (8/20 µs) 标准

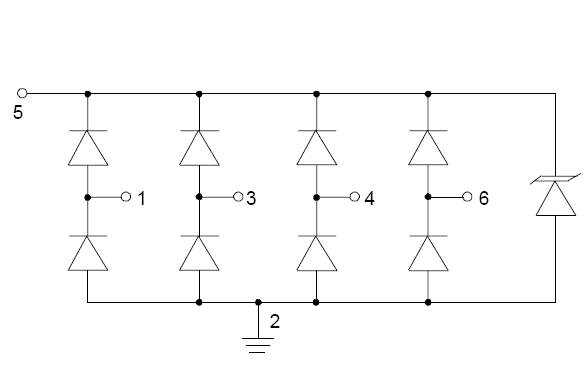

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space

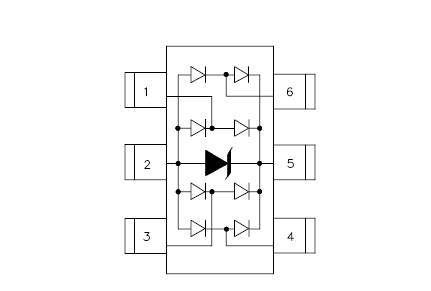

- Protects four I/O Lines
- Low capacitance: 3 pF typical
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- USB 2.0 power & data line protection
- Video graphics cards
- Monitors and flat-panel displays
- Digital video interface (DVI)
- 10/100/1000 Ethernet
- Notebook Computers
- SIM port
- ATM interfaces
- IEEE 1394 FireWire® ports
应用
封装

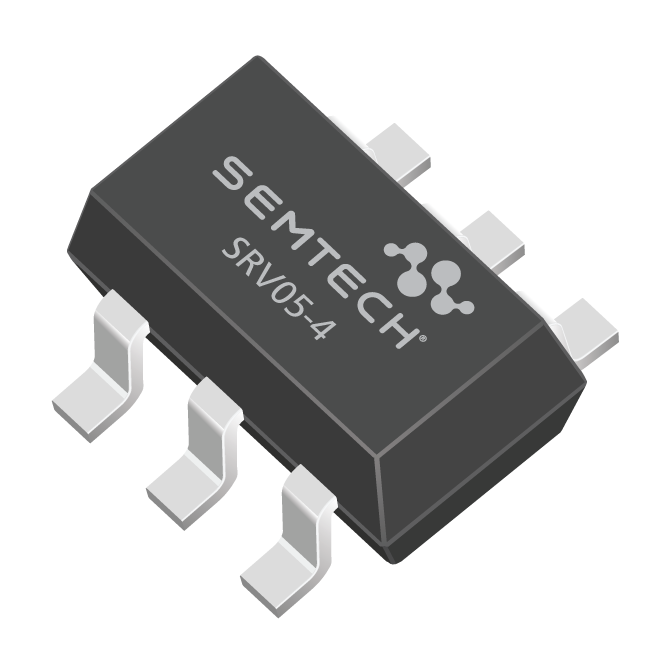

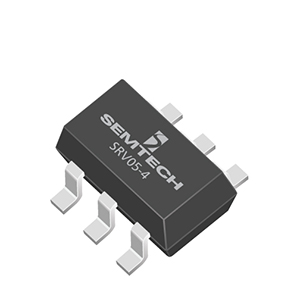

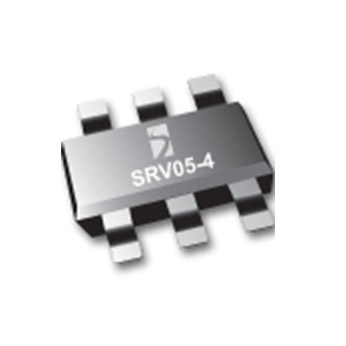

- SOT-23 6L
- 3000 pcs. Tape & Reel
订购代码
- SRV05-4.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
