SDC36

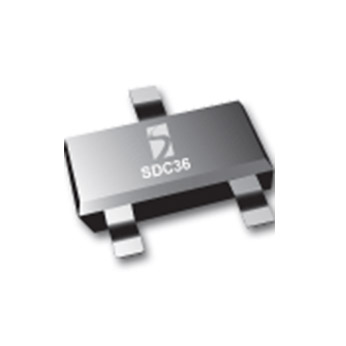

The SDC36 is a high-surge transient voltage suppressor (TVS) optimized for protection of sensitive digital sensors used in proximity switches and industrial control applications. The SDC36 protects the components from over-voltages caused by electrostatic discharge (ESD), electric fast transients (EFT) and tertiary lightning.
功能
- 350 watts peak pulse power (tp = 8/20 µs)
- Transient protection for data & power lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 2 A (1.2/50 µs)
- Replaces two discrete devices
- 钳位电压低
- 小漏电流
- High surge capability
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- 2-wire, 3-wire, and 4-wire DC high-side proximity switches
- Digital sensor input protection
- 工业控制
- 24 V – 33 V DC supply protection
应用
封装
- SOT-23
- 3000 pcs. Tape & Reel
订购代码
- SDC36.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
Datasheets & Documentation
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
