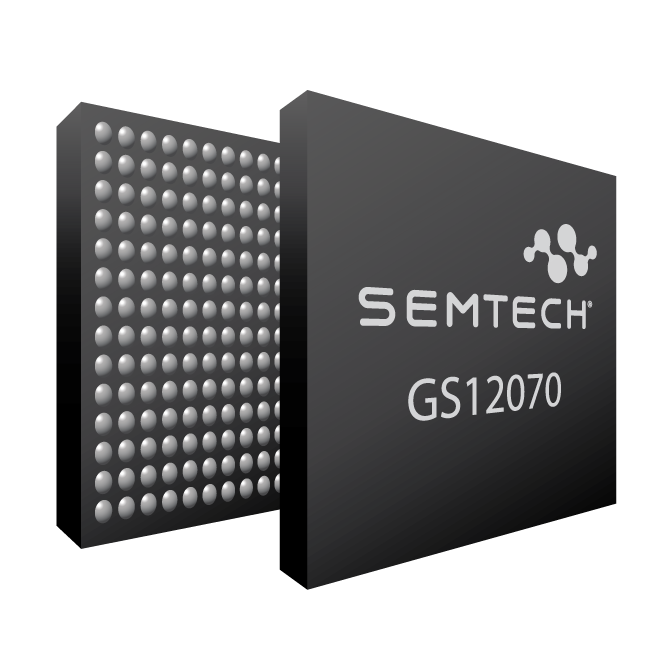

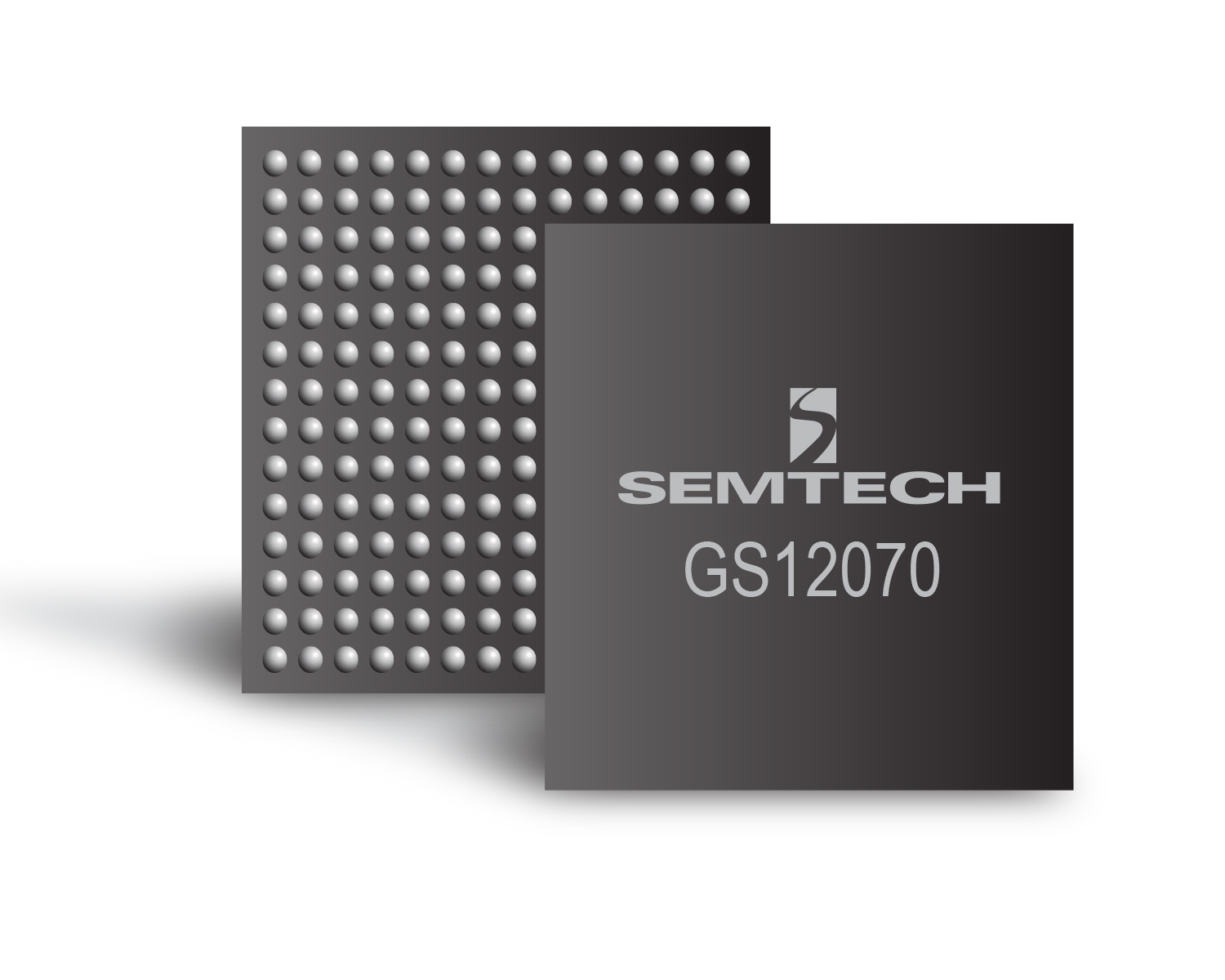

Semtech GS12070

GS12070 是四输入四输出器件，支持多链路、双链路和单链路 UHD-SDI 接口之间的转换。它还具有旁路模式，其中输入可以直接路由到输出。该器件在转换模式下支持 12Gb/s、6Gb/s、3Gb/s 和 1.5Gb/s 数据速率，在旁路模式下支持 270Mb/s。

The GS12070’s features 100 ohm differential serial interfaces, allowing connection to Semtech equalizers, cable drivers as well as optical modules.

Single-Chip Conversion
The GS12070 supports both multiplex and de-multiplex modes in one device. The desired mode and conversion is set through mode-select pins.

Robust Receive Solution
The GS12070 eases the system challenge of receiving multi-link SDI signals by automatically compensating for input channel skew. In modes that convert from 12Gb/s ßà 6Gb/s combinations, the GS12070 automatically compensates for up to 300ns of serial input channel skew. In all other conversion modes, up to 800ns of input channel skew is available. As link ordering is critical for multi-link interfaces. The GS12070 is able to automatically order the incoming serial streams for multiplexing SMPTE compliant UHD-SDI interfaces. The link order can also be configured manually to compensate for cases where the cable order has been connected incorrectly.

Flexible Distribution Modes
In configuration modes where there are unused outputs available, the GS12070 can be programmed to duplicate existing outputs. In addition, inputs can be assigned to unused outputs for monitoring purposes.
