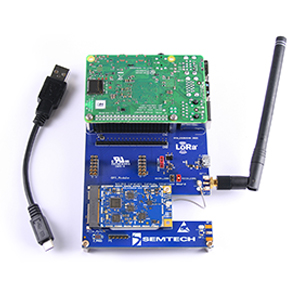

SX1302CSSXXXGW1
LoRa® Corecell 网关会话前检测和频谱扫描参考设计是为欧洲、美国、日本和中国 ISM 频段打造的完整室内和室外网关统包解决方案参考设计。该参考设计基于 SX1302 和 SX1250。
功能
- 与传统产品相比，功耗降低了 10 倍
- 最大 TX 输出功率 (CN490) = +17dBm
- 最大 TX 输出功率 (EU868/US915) = +27dBm
- 最大 TX 输出功率 (AS923) = +10dBm
- 接收 8 个 LoRa 通道的多数据速率（SF5 ~ SF12 / 125 同时 kHz）+ 2 个单数据速率（LoRa 250 / 500kHz 和 FSK 50kbps）
- 典型灵敏度等级 (CN490)：
- SF12 BW 125kHz 时为 -141dBm
- SF7 BW 125kHz 时为 -126dBm
- FSK 50kbps 时为 -109dBm
- 典型灵敏度等级 (EU868/US915)：
- SF12 BW 125kHz 时为 -140dBm
- SF7 BW 125kHz 时为 -125dBm
- FSK 50kbps 时为 -110dBm
- 典型灵敏度等级 (AS923)：
- SF12 BW 125kHz 时为 -141dBm
- SF7 BW 125kHz 时为 -126dBm
- FSK 50kbps 时为 -110dBm
- 智能家居
- 楼宇自动化
- 工厂自动化
应用
订购代码
- SX1302CSS490GW1，适用于中国 ISM 频段参考设计套件
- SX1302CSS868GW1，适用于欧洲 ISM 频段参考设计套件
- SX1302CSS915GW1，适用于美国 ISM 频段参考设计套件
- SX1302CSS923GW1，适用于日本 ISM 频段参考设计套件
Datasheets & Documentation
应用说明
- 5 Things You Need to Know About LoRaWAN®-Based Gateways
- 用于欧洲 LBT 频谱扫描网关的 Corecell 参考设计（USB 版）认证报告
- 用于日本 LBT 频谱扫描网关的 Corecell 参考设计（USB 版）认证报告
- 用于美国 LBT 频谱扫描网关的 Corecell 参考设计（USB 版）认证报告
- 用于中国 LBT 频谱扫描网关的 USB Corecell 参考设计性能报告
- 用于欧洲 LBT 频谱扫描网关的 USB Corecell 参考设计性能报告
- 用于日本 LBT 频谱扫描网关的 USB Corecell 参考设计性能报告
- 用于美国 LBT 频谱扫描网关的 USB Corecell 参考设计性能报告
其他资源
探索该产品的软件下载、文档、推荐链接和更多资源。
Github 上的 HAL 和数据包转发器
