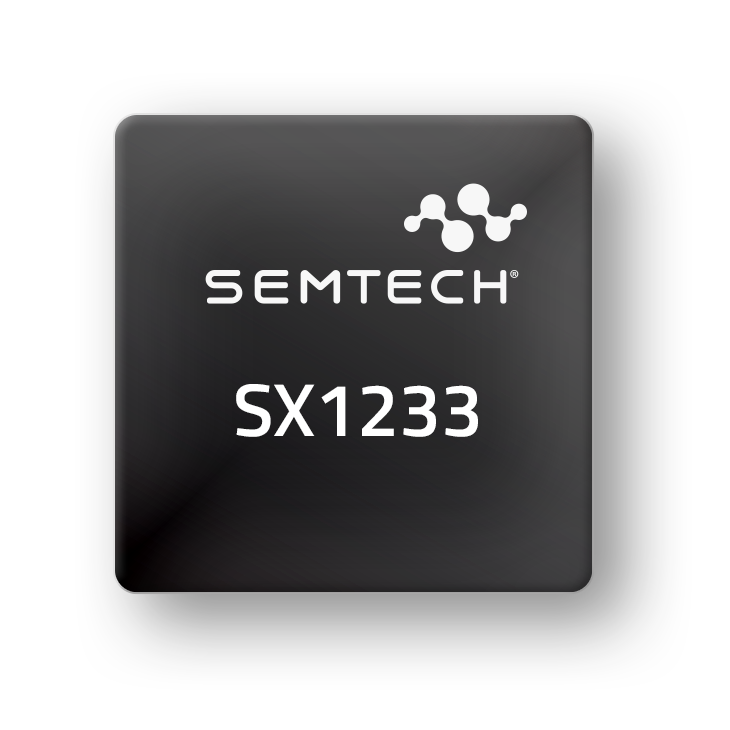

SX1233
SX1233 是一款高度集成的射频收发器芯片，工作频率范围很广，包括 433、868 和 915 MHz 免授权 ISM（工业、科学和医学）频段。它具备高度集成的架构，在保持最大设计灵活性的同时，可最大程度减少外部元件的使用。
功能
- 可编程位，速率高达 600 kbps (FSK)
- 灵敏度高：1.2 kbps 时低至 -120 dBm
- 高选择性：16 抽头 FIR 通道滤波器
- 防弹前端：IIP3 = -18dBm、IIP2 = +35dBm，80dB 阻断抗扰性，无图像频率响应
- 电流低：Rx = 16 mA，保持寄存器时为 100nA
- 可编程输出功率：-18dBm 至 +17dBm，每档 1dB
- 在芯片的电压范围内能够提供恒定的射频性能
- 高度集成的合成器，分辨率 61 Hz
- FSK、GFSK、MSK、GMSK 和 OOK 调制
- 内置位同步器，可执行时钟恢复操作
- 输入同步文字识别
- 115 dB 以上动态范围 RSSI
- 自动射频感应与超快速 AFC
- 使用 CRC、AES-128 加密和 66 字节 FIFO 的封包引擎
- AEC-Q100 认证产品
- 内置温度传感器和低电量指示灯
- 自动读表
- 无线传感器网络
- 家庭和楼宇自动化
- 无线警报和安全系统
- 工业监控
应用
封装

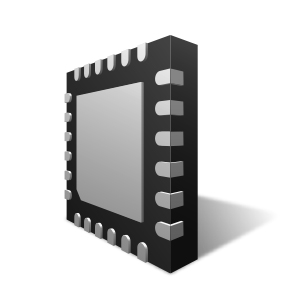

- QFN 24
订购代码
- SX1233IMLTRT
