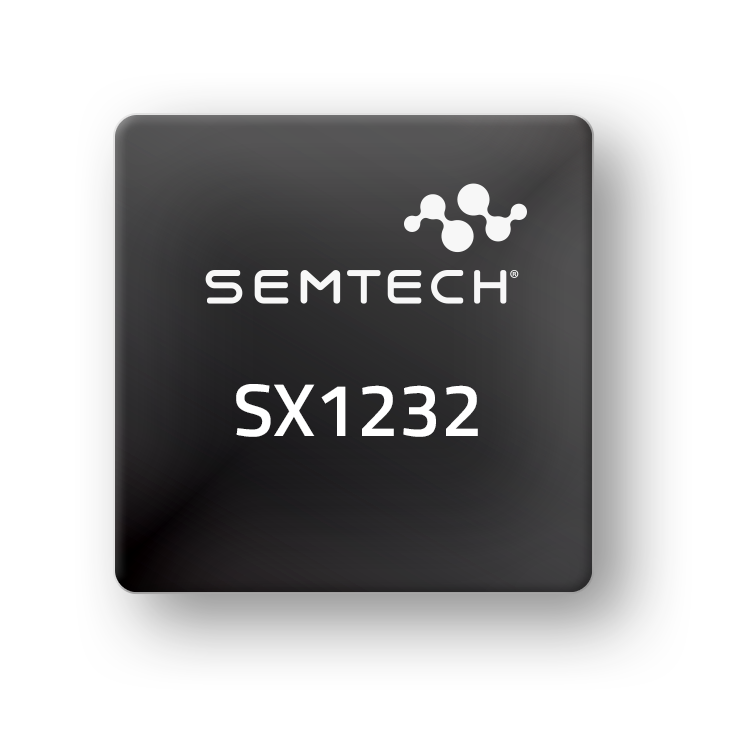

SX1232
SX1232 是一款全面集成的 ISM 频段收发器,针对欧洲 (EN 300 220-1) 868MHz 频段和美国 915MHz 频段(FCC 第 15 部分)中的使用进行了优化,外部元件极少。它在所有操作模式下都能同时提供高链路预算和低电流消耗。
功能
- +20 dBm:在恒定射频输出功率 100 mW 和电源电压下
- +14 dBm 高效率 PA
- 可编程位,速率高达 300 kbps
- 灵敏度高:1.2 kbps 时低至 -123 dBm
- 防弹前端:IIP3 = -12 dBm
- 80 dB 阻断抗扰性
- 电流低:RX 为 9.3 mA,保持寄存器时为 100nA
- 高度集成的合成器,分辨率 61 Hz
- FSK、GFSK、MSK、GMSK 和 OOK 调制
- 内置位同步器,可执行时钟恢复操作
- 同步字识别
- 前导检测
- io-homecontrol® 兼容模式
- 115 dB 以上动态范围 RSSI
- 自动射频感应与超快速 AFC
- 带 CRC 的数据包引擎,高达 64 字节
- 内置温度传感器和低电量指示灯
- 自动读表
- 无线传感器网络
- 无线警报和安全系统
- 工业监控
应用
封装

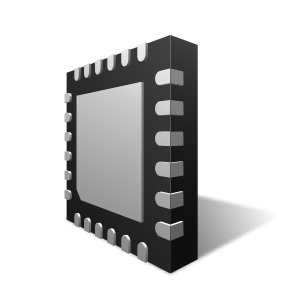

- QFN 24
订购代码
- SX1232IMLTRT - 无铅、无卤素且符合 RoHS/WEEE 标准
Pb(Lead)-Free/RoHS-Green Info
(-40°C 至 +85°C / 4000 循环)
(50°C,4000 小时)
