概览

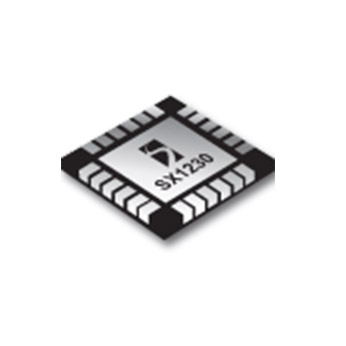

SX1230 是一款完全集成的发射器芯片，可在 315、434、868 和 915MHz 免授权 ISM 频段中运行。
功能
- 可编程输出功率： +17 dBm 至 -18 dBm。
- 比特率高达 600 kbit/s。
- FSK、GFSK、MSK、GMSK 和 OOK 调制。
- 单机模式：无需主机 MCU。
- 在 1.8 至 3.7 V 电压范围内提供一致的射频性能。
- 相位噪声低（50 kHz 时为 -95 dBc/Hz），自动化 PLL 校准和高度集成式 VCO 及环路滤波器。
- 片上 RC 定时器，适用于定时器/唤醒应用。
- 低电量检测。
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SX1230 数据表 | 2018-12-21 | | |
| 计算传导功率测量的辐射功率和场强 | 2019-04-18 | | |
| FCC 第 15.247 部分使用数字调制的规则系统 | 2019-04-18 | | |
| 提高晶体振荡器的准确度 | 2019-04-18 | | |
| RF 设计指南：PCB 布局和电路优化 | 2019-07-03 | | |
| XE8000 驱动 XE1200 收发器 — 标准 API 定义 | 2019-07-03 | ZIP | |
| SM1230 BOM 和示意图 | 2024-02-01 | ZIP | |
| SX1230-11SKA 用户指南 | 2019-07-03 | | |
| SX1230-12SKA User Guide | 2019-11-12 | ZIP | |
| 文档 | Release Date | Type | |
|---|---|---|---|
| SX1230 入门套件 | 2019-04-18 | EXE | |

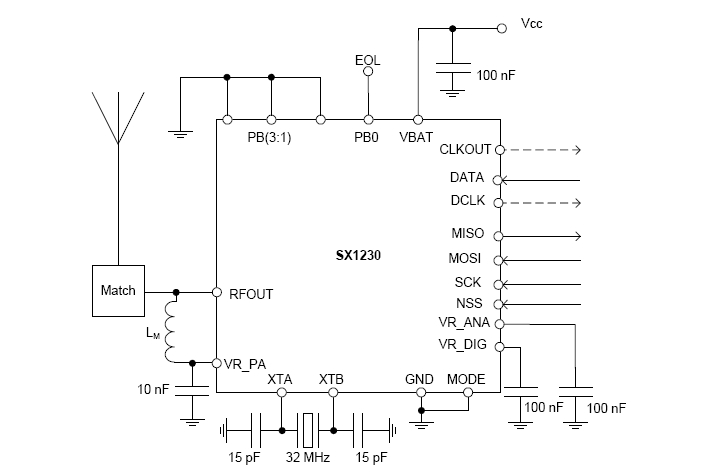

点击图表放大
