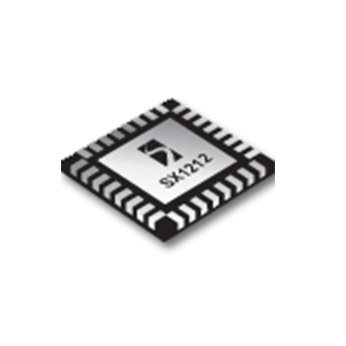

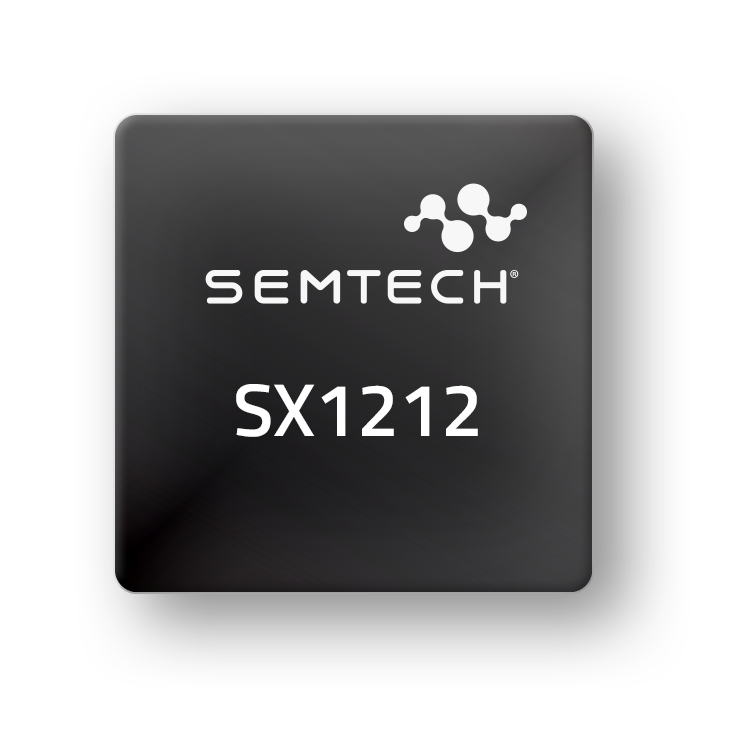

概览
SX1212 是一款低成本单芯片收发器，工作频率范围为 300MHz 至 510MHz。SX1212 针对极低功耗（接收器模式下为 3mA）进行了优化。
SX1212 是一款低成本单芯片收发器，工作频率范围为 300MHz 至 510MHz。SX1212 针对极低功耗（接收器模式下为 3mA）进行了优化。
功能
- 低输出功耗：3mA
- Tx 功耗低：25mA @ +10dBm
- 接收灵敏度良好：低至 -104 dBm（FSK 调制模式下 25 kb/s 时）和 -110 dBm（OOK 调制模式下 2 kb/s 时）
- 可编程射频输出功率：最大 +12.5 dBm，8 档
- 具有数据白化和自动 CRC 生成的封包处理功能
- RSSI（接收信号强度指示）
- 比特率高达 150kb/s，NRZ 编码
- 片上频率合成器
- FSK 和 OOK 调制
- 输入同步文字识别
- 内置位同步器，可用于输入数据和时钟的同步与恢复
- 5 x 5 mm TQFN 封装
- 电路配置经过优化，支持低成本应用
封装
- TQFN32
订购代码
- SX1212IWLTRT：超低功率收发器，集成 300MHz 至 510MHz 收发器
- SX1230-13RKEA433：遥控无钥匙进入参考设计套件（交钥匙），含有 SX1230 发射器、SX1211 或 SX1212 收发器、KEELOQ® 跳码加密软件和 Microchip 的 PIC16F631 或 PIC16F677 8 位 MCU
PB Free/ROHS
Learn More →
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SX1212 数据表 | 2018-12-21 | | |
| XE8000 驱动 XE1200 收发器 — 标准 API 定义 | 2019-07-03 | ZIP | |
| SM1212 Gerber、BOM 和示意图 | 2024-02-01 | ZIP | |
| SX1230-12SKA USB 入门套件用户指南 | 2019-11-12 | ZIP | |
| 文档 | Release Date | Type | |
|---|---|---|---|
| SX1212SKA 软件 | 2019-04-18 | EXE | |

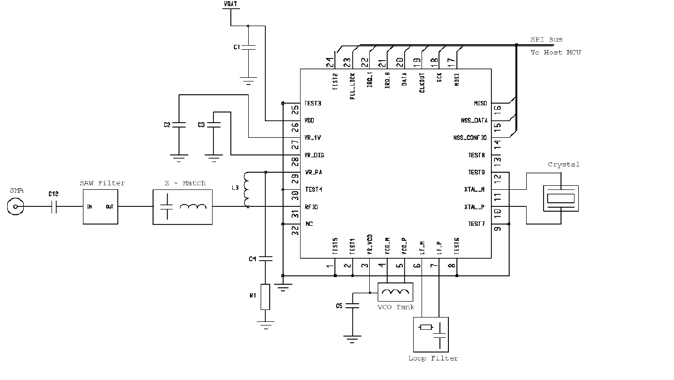

点击图表放大
