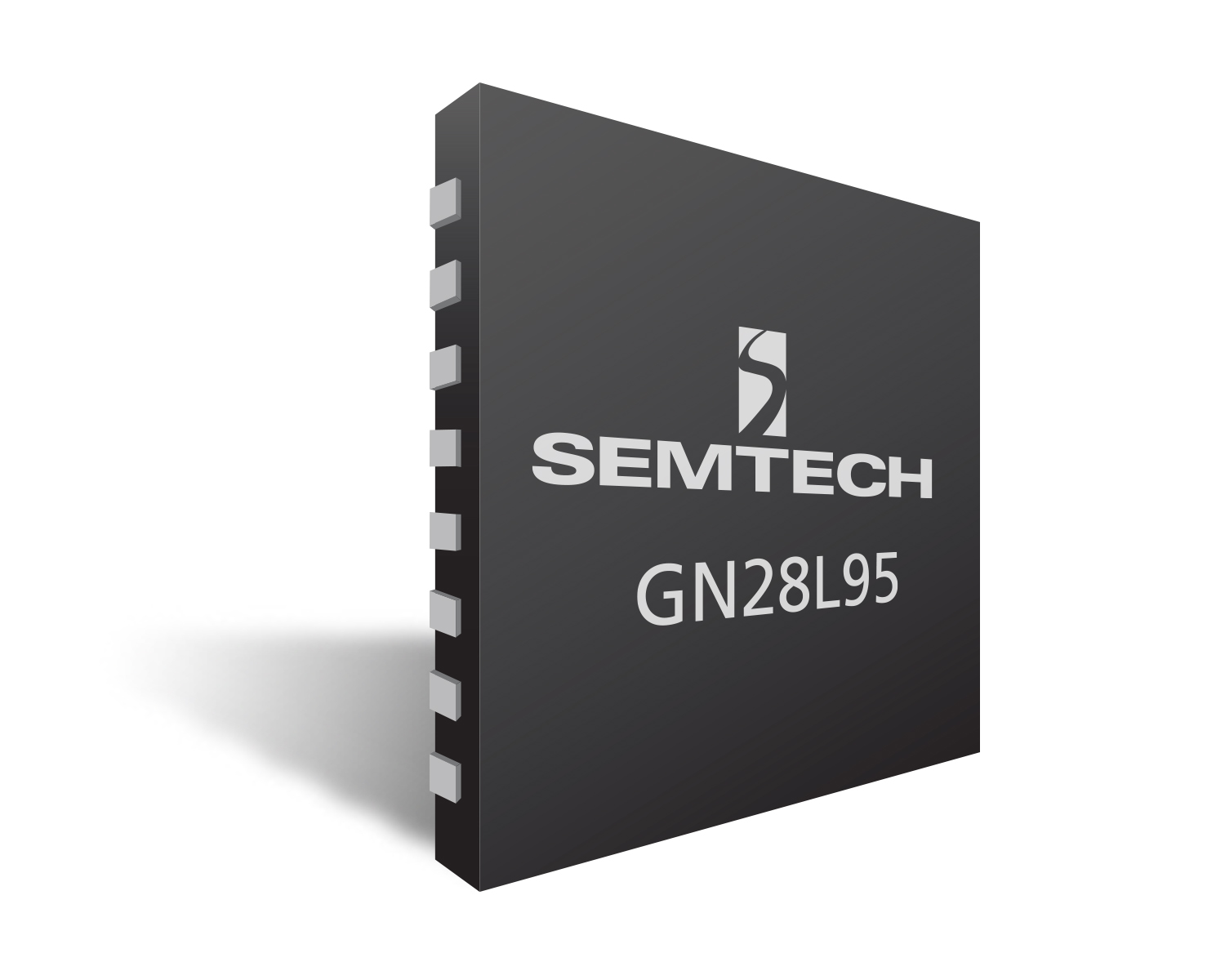

GN28L95
GN28L95 is a combined burst mode laser driver and limiting amplifier designed for 10Gbps passive optical network (PON) optical networking unit (ONU) applications. GN28L95 features automatic extinction ratio control for reliable operation of the laser over all conditions. A high accuracy auto-ranging A/D converter and on-chip temperature sensor give precise diagnostic reporting. A low-cost integrated avalanche photodiodes (APD) controller enables a complete receive solution.
GN28L95 的应用包括 XG-PON 和 10G 以太网无源光网络 (EPON) BOSA-on-board ONU。GN28L95 与 GN7069 10G 跨阻放大器 (TIA) 构成完整的 10G PON 芯片组。
功能
- 10Gbps 接收器，2.5Gbps 发射器
- Automatic mean power and extinction ratio control
- 集成 APD 控制器
- TX_SD 和异常 ONU 警报
- Fast burst on timing
- 快速突发模式环路建立时间
- XG-PON 光纤入户 (FTTH) ONU/光联网终端 (ONT)
- 10GEPON 光纤到户 (FTTH) ONU/ONT
应用
封装
- QFN-32
订购代码
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
