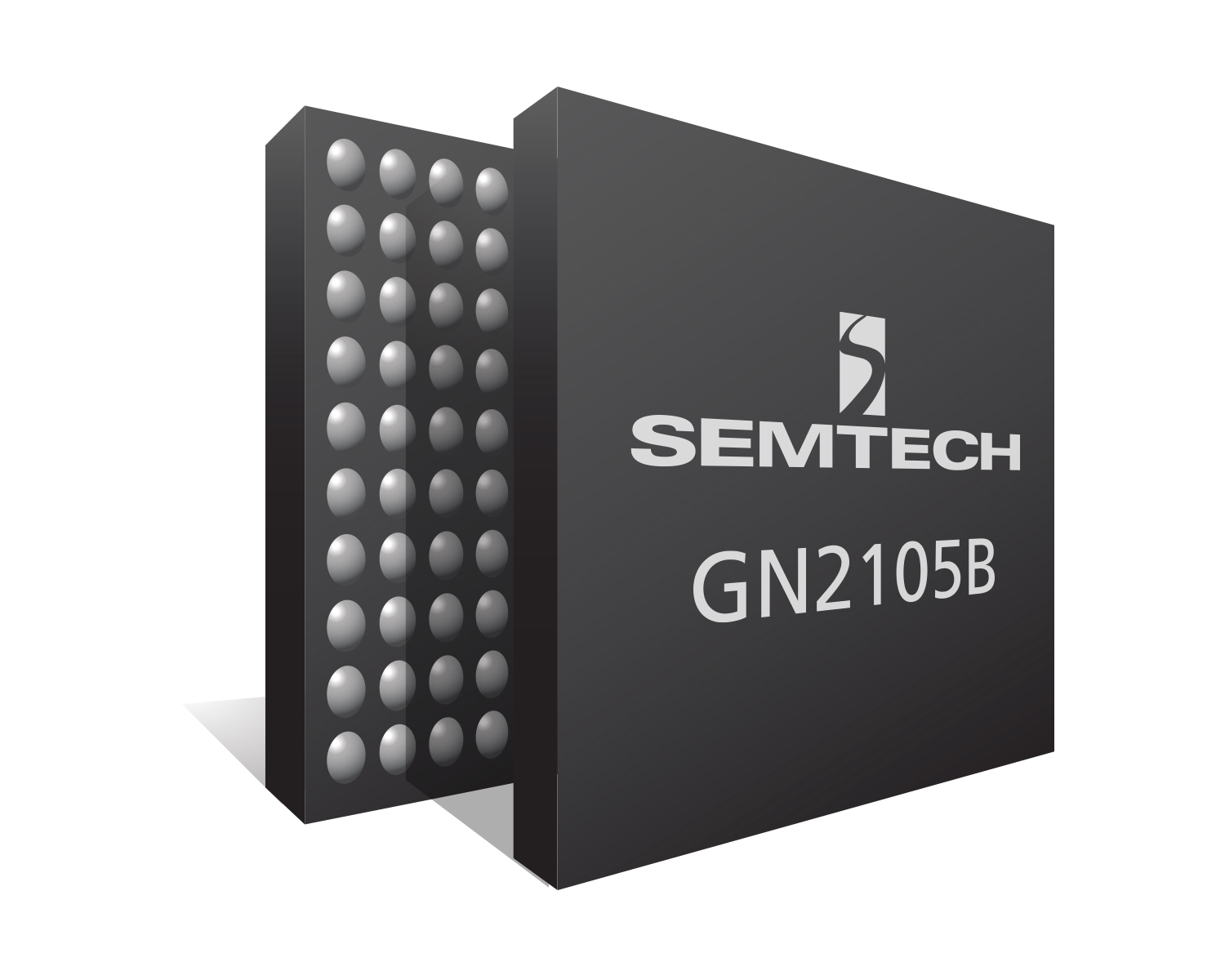

GN2105B
The GN2105B is a quad ClearEdge® CDR with an integrated DML laser driver designed for reference-free 24Gb/s to 28Gb/s signal conditioning within next-generation pluggable optical modules.
Please contact your sales rep for more information.
ClearEdge GN2105B CDR 产品信息:
- ClearEdge GN2105B 是一款集成了 DML 激光驱动器的四通道 CDR
- 在 100G QSFP28 PSM4 和 CWDM4 模块等应用中广泛采用
- 数据速率扩展(24.0 Gb/s 至 28.1 Gb/s)和 i-Temp 支持
- 采用紧凑型 5.0 mm x 5.5 mm FC-CSP 封装
- 收发器与 Semtech 集成了 TIA 的 ClearEdge GN2110S 四通道 CDR 配合使用时,可提供业内顶级的 < 3.5 W 模块解决方案
- 可同时根据板上芯片光学和无源 TOSA 进行模块设计,实现最大程度的灵活性
Pb(Lead)-Free/RoHS-Green Info
(-40°C 至 +85°C / 4000 循环)
(50°C,4000 小时)
