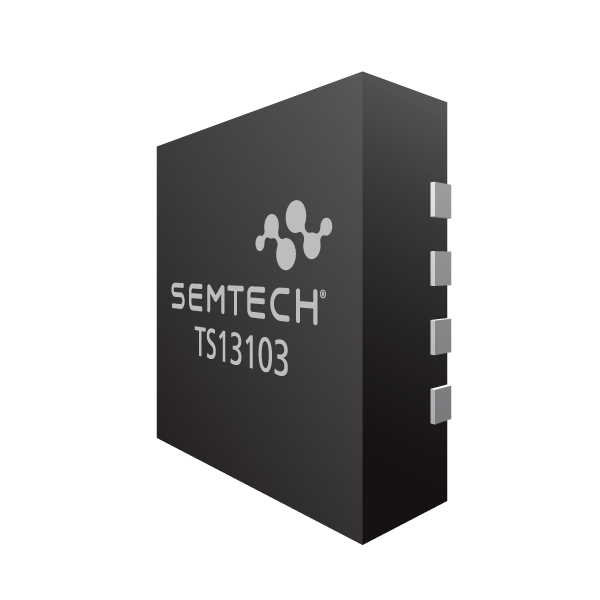

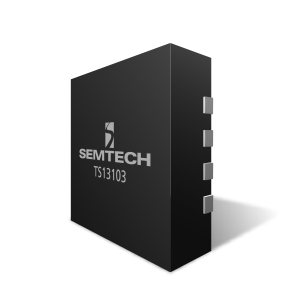

TS13103
Product inactive. Information on this page is for reference only.
The TS13103 is a galvanically isolated 60V power switch device with bi-directional blocking. The device includes an integrated 290m high voltage switch allowing high efficiency switching of power loads or other high current applications. CLK input pin control sequences support switching options, including immediate on/off, zero-volt switch-on, zero-current switch-off, dither modes, as well as latching and non-latching behavior.
功能
- Low Quiescent Operating Currents
2μA in OFF state
5μA in ON state - Supports galvanically-isolated I/O
- Galvanic power transfer from load supply
- Addressable for minimum GPIO usage
Supports four physical address configurations - Single control signal for on/off input (CLK)
Microcontroller-compatible 1.7V to 5.5V input levels
Configurable switching options - Switch Characteristics:
Bi-directional blocking in OFF state
Single switch device
60V switch and 290mΩ on-resistance
Up to 2.5A operating current - Package Options
16 lead QFN package – 3x3mm, 1.0mm max height - Operating Modes
Zero-cross ON / OFF
Immediate ON / OFF
Dithering Mode for system power sharing
Switch state polling
- Power load / rail switching
- 输入电源多路复用
- Isolated power supplies
- Solid state relays
- HVAC control
- 洒水器控制器
- Internet of Things (IoT)
应用
封装
- Packaged in a 16 lead QFN package – 3x3mm, 1.0mm max height
订购代码
- TS13103-QFNR
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
TS13103
产品描述
NEO-ISO SOLID STATE RELAY WITH DIAGNOSTICS AND POWER TRANSFER OUTPUT (PTO)
引脚数
16
封装类型
QFN
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
