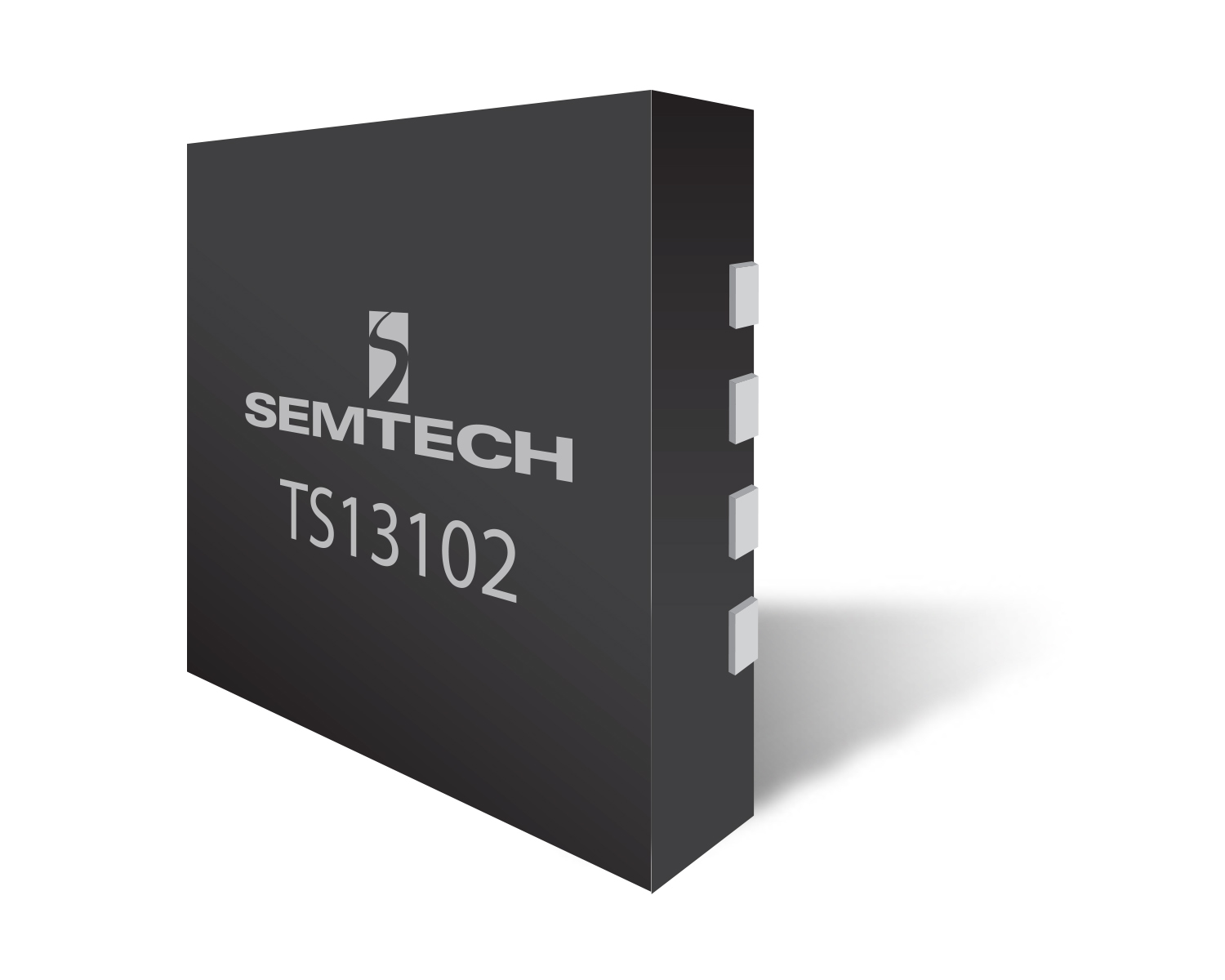

TS13102
The TS13102 is a galvanically isolated 60V power switch device with bi-directional blocking. The device includes a single integrated 290mΩ high voltage switch allowing high efficiency switching of power loads or other high current applications. The single-pin CLK input pin controls the state of the switch through sequence options which control the way the device switches, including immediate on/off, zero-volt switch-on, zero-current switch-off, dither modes, as well as latching and non-latching behavior.
功能
- Low Quiescent Operating Currents
2μA in OFF state
5μA in ON state - Supports scalable galvanically-isolated I/O
- Addressable for minimum GPIO usage
Supports eight physical address configurations - Single control signal for on/off input (CLK)
Microcontroller-compatible 1.7V to 5.5V input levels
Configurable switching options - Switch Characteristics:
Bi-directional blocking in OFF state
Single switch device
60V switch and 290mΩ on-resistance
Up to 2.5A operating current - Package Options
16 lead QFN package – 3x3mm, 1.0mm max height - Operating Modes
Zero-cross ON / OFF
Immediate ON / OFF
Dithering Mode for system power sharing
Switch state polling
- Power load / rail switching
- 输入电源多路复用
- Isolated power supplies
- Solid state relays
- HVAC control
- 洒水器控制器
- Internet of Things (IoT)
应用
封装
- Packaged in a 16 lead QFN package – 3x3mm, 1.0mm max height
订购代码
- TS13102-QFNR
