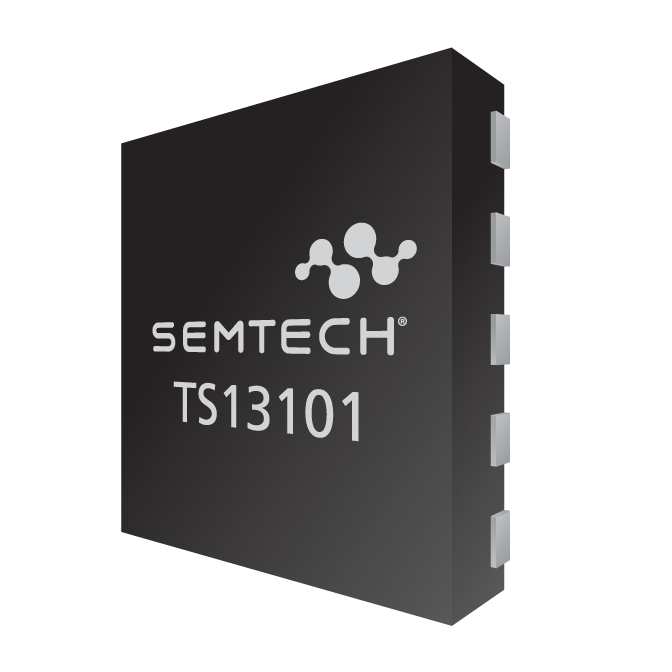

TS13101
The TS13101 is a galvanically isolated 60V solid state relay with bi-directional blocking. The device includes a single integrated 110Ohm high voltage FET allowing high efficiency switching of power loads or other high current applications. The input pin, CLK, controls the turn on/off of the switch. When the correct CLK sequence is provided the switch will latch on and stay on until the turn off sequence is given or a fault is detected.
功能
- Low Quiescent Operating Currents
- 2uA in OFF state
- 4uA in ON state
- Scalable galvanic isolation from primary to secondary sides of the device
- Single control signal for on/off input (CLK)
- Operation from 2.9V to 5.5V compatible with standard microcontrollers
- 开关性能
- High voltage switch with bi-directional blocking in OFF state
- Single switch device
- 60V switch and 110mohm Rdson
- Up to 4A operating current
- 电力负荷/轨道开关
- Input supply muxing
- Isolated power supplies
- Solid state relays
- HVAC control
应用
封装
- Packaged in a 20pin QFN (4x4)
订购代码
- TS13101-QFNR: RoHS and Reach compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
TS13101M
产品描述
LATCHING GALVANIC ISOLATED SWITCH
引脚数
20
封装类型
QFN
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
Please consult with your Semtech Sales Rep
