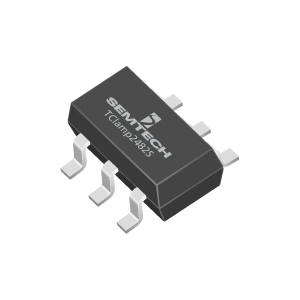

TClamp2482S
功能
- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV（空气），30kV（接触）
- IEC 61000-4-4 (EFT) 2kV (5/50ns)
- IEC 61000-4-5（雷电）30A (8/20μs)
- Bias diodes prevent charging of TVS capacitance
- 工作电压选项：8V、12V、20V、24V
- 低电容：最大 2.5pF
- 低电容变化（1V 至 VRWM）
- Solid-State Silicon-Avalanche Technology
- 无铅、无卤素且符合 RoHS/WEEE 标准
- ADSLx / VDSLx Secondary Protection
- G.Fast 线路驱动器次级保护
- H 级 VSDL2 线路驱动器次级保护
- Modems
- Access Equipment
- 局端设备
- Customer Premise Equipment
应用
封装
- JEDEC SOT-23 6L 封装：3.1 x 2.8 x 1.45 mm 3,000 颗
订购代码
- TClamp2482S.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
