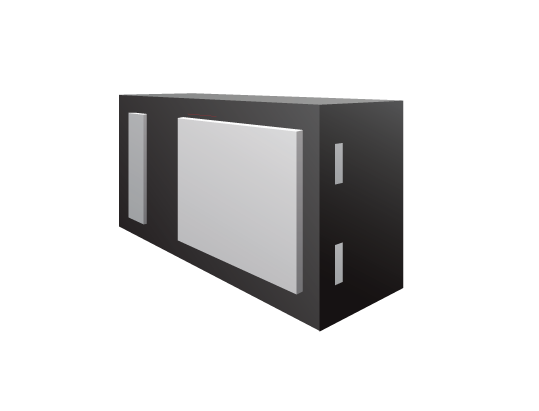

uClamp1561P
μClamp®xx61P series are designed for for use in harsh transient environments. They feature extremely good protection characteristics highlighted by high surge current capability, low peak ESD clamping voltage, and high ESD withstand voltage. Device options are available for protecting data or power lines operating at 5V to 60V.
Pb(Lead)-Free/RoHS-Green Info
