概览

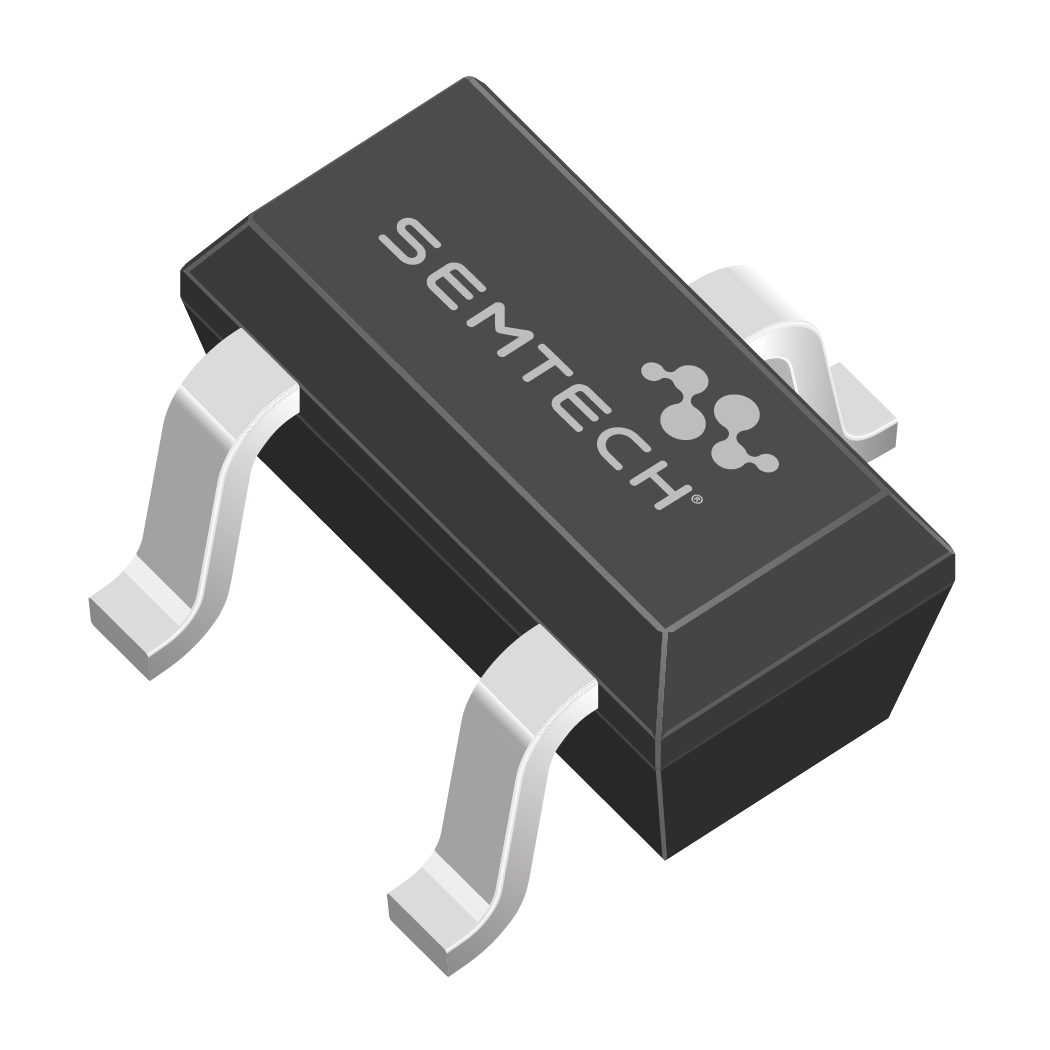

RClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD and EOS. They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
功能
- ESD 耐受电流高
- IEC 61000-4-2 (ESD): ±30kV (contact), ±30kV (air)
- IEC 61000-4-5 (Lightning): 18A (8/20μs)
- IEC 61000-4-4 (EFT)：4kV，80A
- Low capacitance: 0.75pF Max
- Protects two high speed data lines
- Working voltage: 4V
- 低 ESD 钳位电压
- Low dynamic resistance: 0.12Ω typical
- 反向泄漏电流小
- 固态硅雪崩技术
应用
- USB 2.0
- LVDS
- GPIO
- 模拟视频
- USB Type-C
- 键盘
