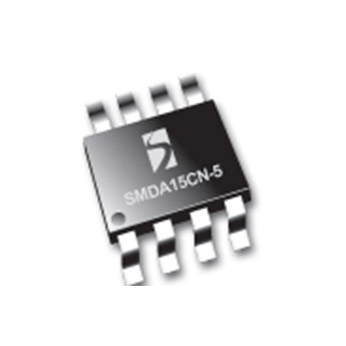

Semtech SMDA15CN-5
15 V 5 线双向 TVS 阵列
The SMDAxxCN-5 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
概览
功能
- 300 watts peak pulse power (tp = 8/20 µs)
- Protects up to 5 bidirectional lines
- Working voltage: 15 V
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- 小漏电流
- Low operating voltage
- 钳位电压低
- 固态硅雪崩技术
- Small SO-8 surface-mount package
应用
- RS-232 data lines
- RS-423 data lines
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- 外围设备
- Set-top boxes
封装
SO-8
订购代码
- SMDA15CN-5.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel - Min order req. NCNR; Use SMDA15C-7.TBT instead
