SMDA15C-8
The SMDAxxC-8 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- 15 V working voltage
- Protects 8 I/O lines
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术

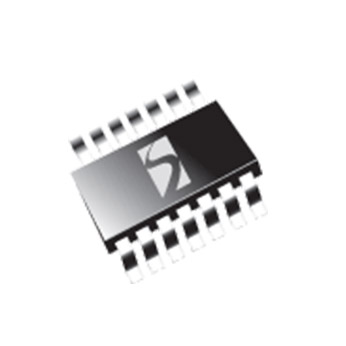

- Small SO-14 surface-mount package
- Lead-free, RoHS and WEEE compliant
- RS-232 and RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Set-top boxes
- Notebooks, desktops, and servers
- Portable instrumentation
- 外围设备
- Serial and parallel ports
应用
封装
- SO-14
- 500 pcs. Tape & Reel
订购代码
- SMDA15C-8.TBT
