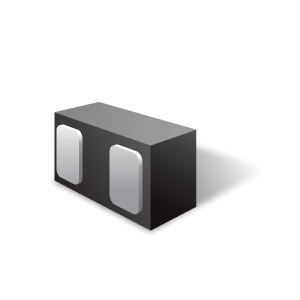

uClamp3331ZA
µClamp3331ZA 具有极为出色的静电放电 (ESD) 防护特性，其特点是极低的动态电阻、低峰值 ESD 钳位电压和高 ESD 耐受电压（根据 IEC 61000-4-2 为 +/-30kV 接触）。µClamp3331ZA 器件将保护一条以 3.3 伏特运行的数据线或电源线。
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
