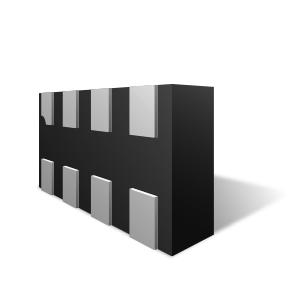

Semtech uClamp3312T
低压 μClamp®,用于千兆位以太网

The μClamp3312T TVS diode is specifically designed to meet the performance requirements of Gigabit Ethernet interfaces. They are designed to protect sensitive PHY chips from damage or upset due to electrostatic discharge (ESD), lightning, electrical fast transients (EFT), and cable discharge events (CDE).
Overview
Features
- 高 ESD 耐受电压:符合 IEC 61000-4-2 标准,+/-30kV(接触/空气放电)
- 符合 IEC 61000-4-2 标准 4 级要求,能够承受 1000 次以上的 ESD 冲击
- 直通式设计,简化电路板布局
- 保护两个线对
- 反向电流小:典型 10nA (VR = 3.3 V)
- 电容随偏压的变化而发生的变化小:典型 1.3 pF (VR = 0 至 3.3V)
- 工作电压:3.3V
- 固态硅雪崩技术
Applications
- 10/100/1000 以太网
- 集成磁性元件/RJ-45 连接器
- LAN/WAN 设备
- 监控摄像头
- 工业控制
- 笔记本电脑和台式机
Packaging
- uClamp3312T.TCT:无铅、无卤素且符合 RoHS/WEEE 标准
Order Codes
- 10/100/1000 以太网
- 集成磁性元件/RJ-45 连接器
- LAN/WAN 设备
- 监控摄像头
- 工业控制
- 笔记本电脑和台式机
Diagrams and Specs
Key Specifications
