概览
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
封装

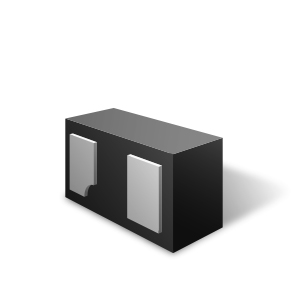

- SLP0603P2X3A
订购代码
- uClamp3311Z.TFT - 15,000, 7 in. Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small 0201 package
- Protects one data line
- Low leakage current: <10nA typical (VR=2.5V)
- 工作电压：3.3V
- Low capacitance: 10pF maximum
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP3311Z Datasheet | 2018-12-15 | | |
应用
- 蜂窝手机和配件
- 便携式仪表
- Keypads, Side Keys, LCD Displays
- Notebooks & Desktop Computers
- MP3 播放器
