uClamp3311P
The μClamp® series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications where low operating voltage is vital. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

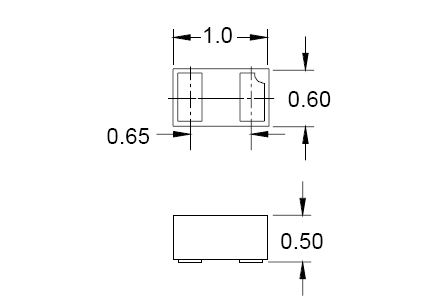

- 超小型封装 (1.0 x 0.6 x 0.5 mm)

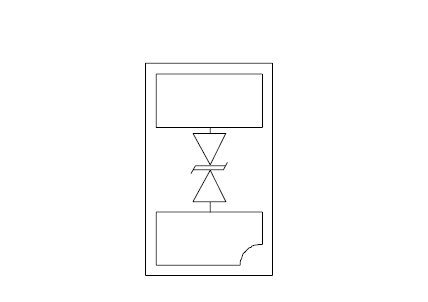

- Protects one data line
- 钳位电压低
- 工作电压：3.3V
- 小漏电流
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- 蜂窝手机和配件
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装
- SLP1006P2
- 3000 pcs. Tape & Reel
订购代码
- uClamp3311P.TCT
