uClamp3306P
The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events. Each device will protect up to six lines operating at 3.3 volts.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- Small package for use in portable electronics

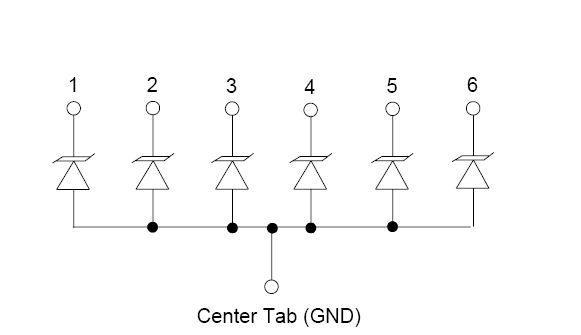

- Protects Six I/O
- 工作电压：3.3V
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- Cellular handsets and accessories
- Notebooks and handhelds
- MP3 播放器
- Digital cameras
- Portable instrumentation
应用
封装

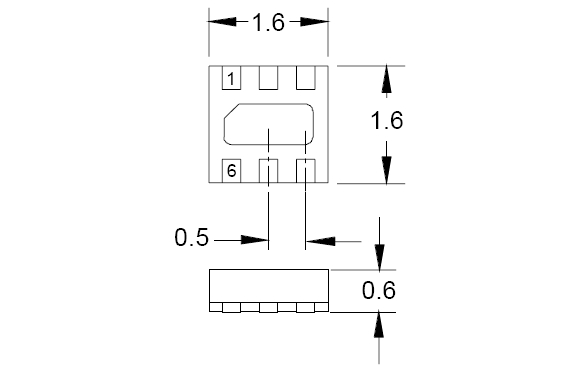

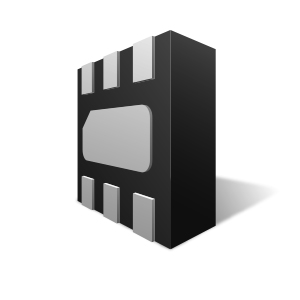

- SLP1616P6
- 3000 pcs. Tape & Reel
订购代码
- uClamp3306P.TCT
