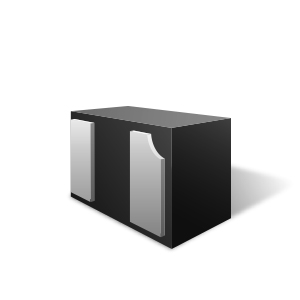

uClamp3301P
μClamp® TVS 二极管专为替代便携式应用（例如手机、笔记本电脑和 PDA）中的多层压敏电阻 (MLV) 而设计。与 MLV 相比，它们具有更出色的电气特性，例如较低的钳位电压、器件性能不会劣化等。它们可以保护灵敏的半导体元件免受静电放电 (ESD)、雷电、电气快速瞬变 (EFT) 和电缆放电事件 (CDE) 造成的损害。
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

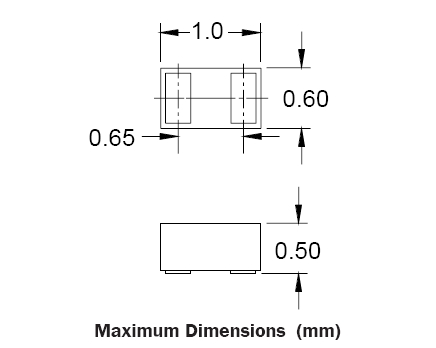

- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- 保护一条 I/O 或电源线路
- 钳位电压低
- 工作电压：3.3V
- 小漏电流
- 固态硅雪崩技术
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用

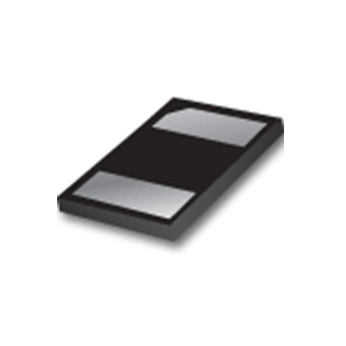

封装
- SLP1006P2
订购代码
- uClamp3301P.TCT：无铅且符合 RoHS 和 WEEE 标准，3000 颗。卷带包装
