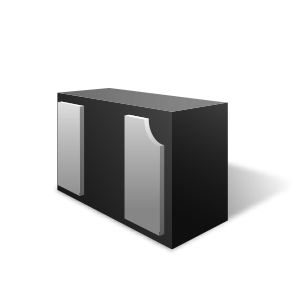

uClamp2501T
The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones,notebook computers, and PDAs.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)

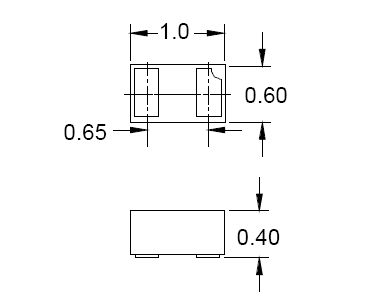

- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Low leakage current: <10nA typical (VR=2.5V)
- Low Operating voltage: 2.5V
- 低电容
- Protects one data line
- 固态硅雪崩技术
应用
封装
- SLP1006P2T
订购代码
- uClamp2501T.TCT: Pb-free, Halogen free, RoHS and WEEE Compliant, 3000 pcs Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
