概览
μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. They also offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
功能
- High ESD withstand voltage: ±22kV (contact) and ±30kV (air) per IEC 61000-4-2
- High lightning surge capability: ±3A (tp=8/20μs) per IEC 61000-4-5

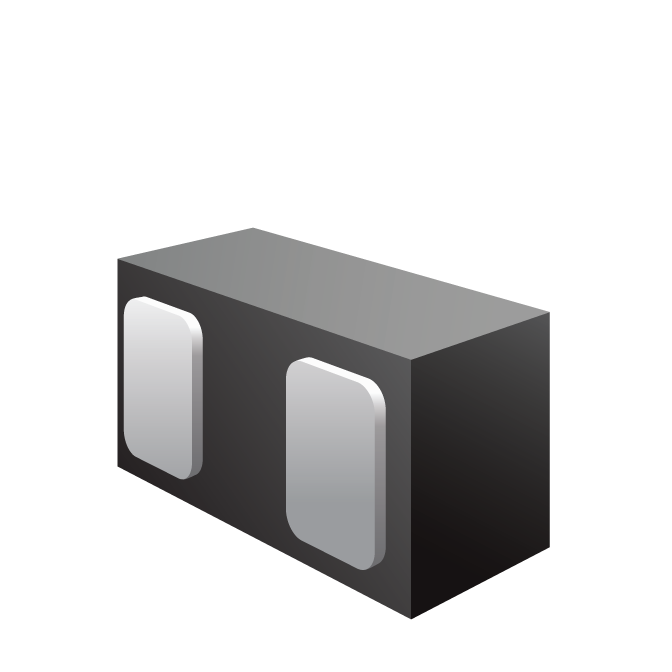

- Ultra small 0201 package
- Protects one data or power line
- 低 ESD 钳位电压
- Working voltage: ±20V
- Low maximum leakage current: 10nA
- 固态硅雪崩技术
- Pb-free, halogen-free, RoHS/WEEE-compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP2011ZA Datasheet | 2023-10-17 | | |
应用
- Cellular handsets & accessories
- Notebook computers
- Tablets
- Portable instrumentation
- 外围设备
