uClamp03361ZA
The μClamp series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and transient surge events. Under normal operating conditions, the device will present a high impedance up to the working voltage (3.3V) of the device. It will remain in an “off” state unless the breakdown voltage (4.9V minimum) is exceeded. This has the effect of lowering the ESD clamping voltage and providing a higher level of protection when compared to conventional ESD protection devices.
功能
- Transient protection to:
- IEC 61000-4-2 (ESD): ±20kV (contact), ±25kV (air)
- IEC 61000-4-5 (lighting): 16A (8/20μS)
- IEC6100-4-4 (EFT): 2kV (5/50nS)
- 工作电压:3.3V
- 保护一条 I/O 或电源线路
- Dynamic resistance: 0.09Ohms (Typ)
- 反向泄漏电流小
- 低 ESD 钳位电压
- 固态硅雪崩技术
- Cellular handsets and accessories
- VBUS protection
- IoT devices
- SSD and HDD
- Digital media player
- Portable instrumentation
- Notebooks and handhelds
应用
封装

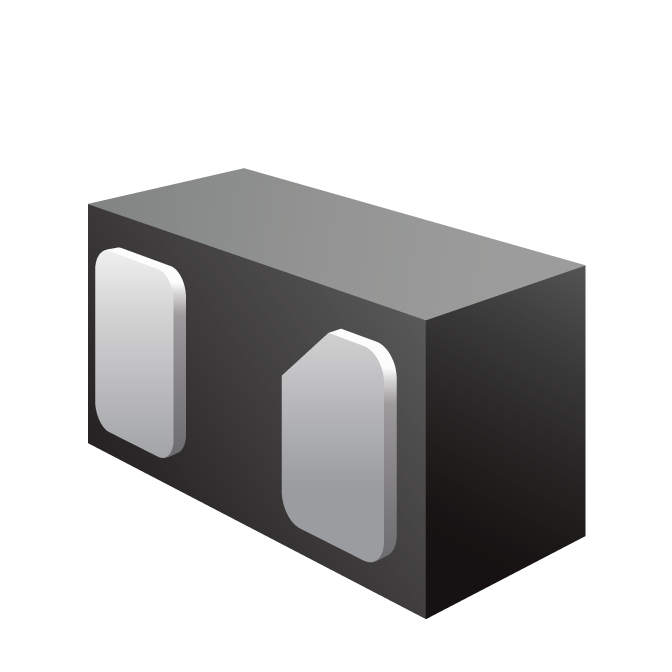

- DFN 0.6 x 0.3 x 0.25mm 2-Lead
订购代码
- μClamp03361ZA.F
