SMS3.3
SMS 系列的 TVS 阵列可以保护灵敏电子器件免受 ESD、雷电和其他电压诱导的瞬变事件造成的损害或闩锁效应。
功能
- 3.3 V 工作电压
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5（雷电）12 A (8/20 µs)

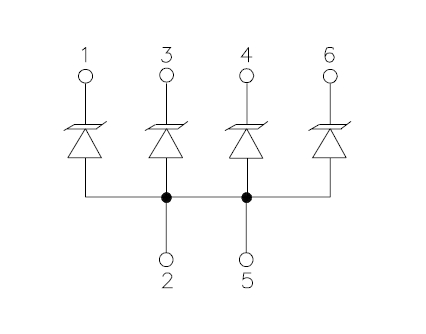

- Protects 4 I/O lines
- 低泄漏电流 (< 1 µA)
- 钳位电压低
- 固态 EPD TVS 技术
- Lead-Free, RoHS and WEEE Compliant
- Cell phone handsets and accessories
- Microprocessor-based equipment
- Personal digital assistants (PDAs) and pagers
- Industrial Equipment
- Notebook computers
- Portable instrumentation
- 外围设备
应用
封装

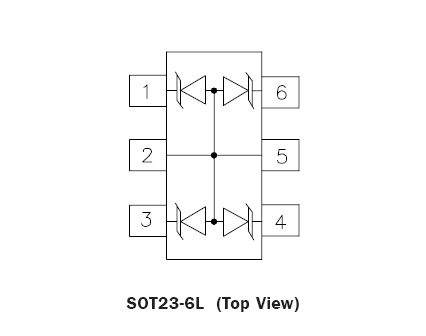

- SOT-23 6L
- 3000 pcs Tape and Reel
订购代码
- SMS3.3.TCT
