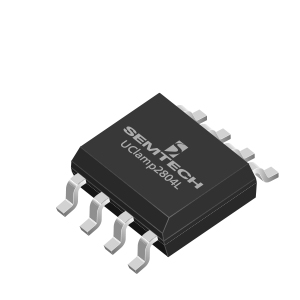

uClamp2804L
The uClamp2804L TVS diode is specifically designed to meet the performance requirements of Gigabit Ethernet interfaces. They are designed to protect sensitive PHY chips from damage or upset due to electrostatic discharge (ESD), lightning, electrical fast transients (EFT), and cable discharge events CDE).
功能
- High ESD withstand Voltage: +/-30kV (Contact/Air) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4
- Flow-through design simplifies layout
- Protects two line pairs
- Low reverse current: 10nA typical (VR=2.8V)
- Low variation in capacitance vs. bias voltage: 1.3pF Typical (VR = 0 to 2.8V)
- Working voltage: 2.8V
- 固态硅雪崩技术
- 10/100/1000 Ethernet
- Integrated magnetics/RJ-45 connectors
- LAN/WAN Equipment
- Security Cameras
- Industrial Controls
- Notebooks & Desktop Computers
应用
封装
- SOIC 8-pin
订购代码
- uClamp2804L.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
