概览

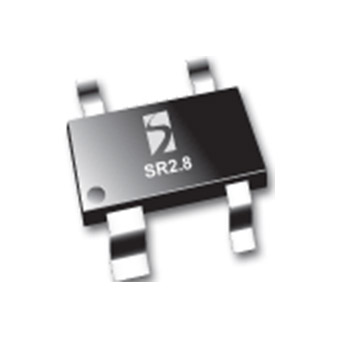

RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SR series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and tertiary lightning.
功能
- ESD protection to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 ns)
- Array of surge rated diodes with internal EPD TVS diode
- Protects two I/O lines
- Low capacitance (< 10 pF) for high-speed interfaces
- 低泄漏电流 (< 1 µA)
- Low operating voltage: 2.8 V
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SR2.8 Datasheet | 2019-05-25 | | |
应用
- Firewire
- Sensitive analog inputs
- Video line protection
- Portable electronics
- Microcontroller input protection
- WAN/LAN equipment
