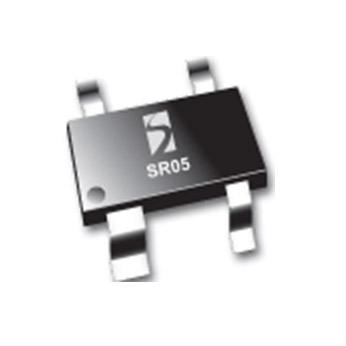

SR05
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SR series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- ESD protection to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 1 kV, 24 A (8/20 µs)
- 浪涌额定二极管阵列，配备内置 TVS 二极管
- Protects 2 I/O lines
- Low capacitance (< 10 pF) for high-speed interfaces
- 钳位电压低
- Low operating voltage: 5.0 V
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- USB power & data line protection
- Ethernet 10Base-T
- I2C bus protection
- Video line protection
- T1/E1 secondary IC side protection
- Portable electronics
- Microcontroller input protection
- LAN/WAN equipment
- ISDN S/T interface
应用
封装

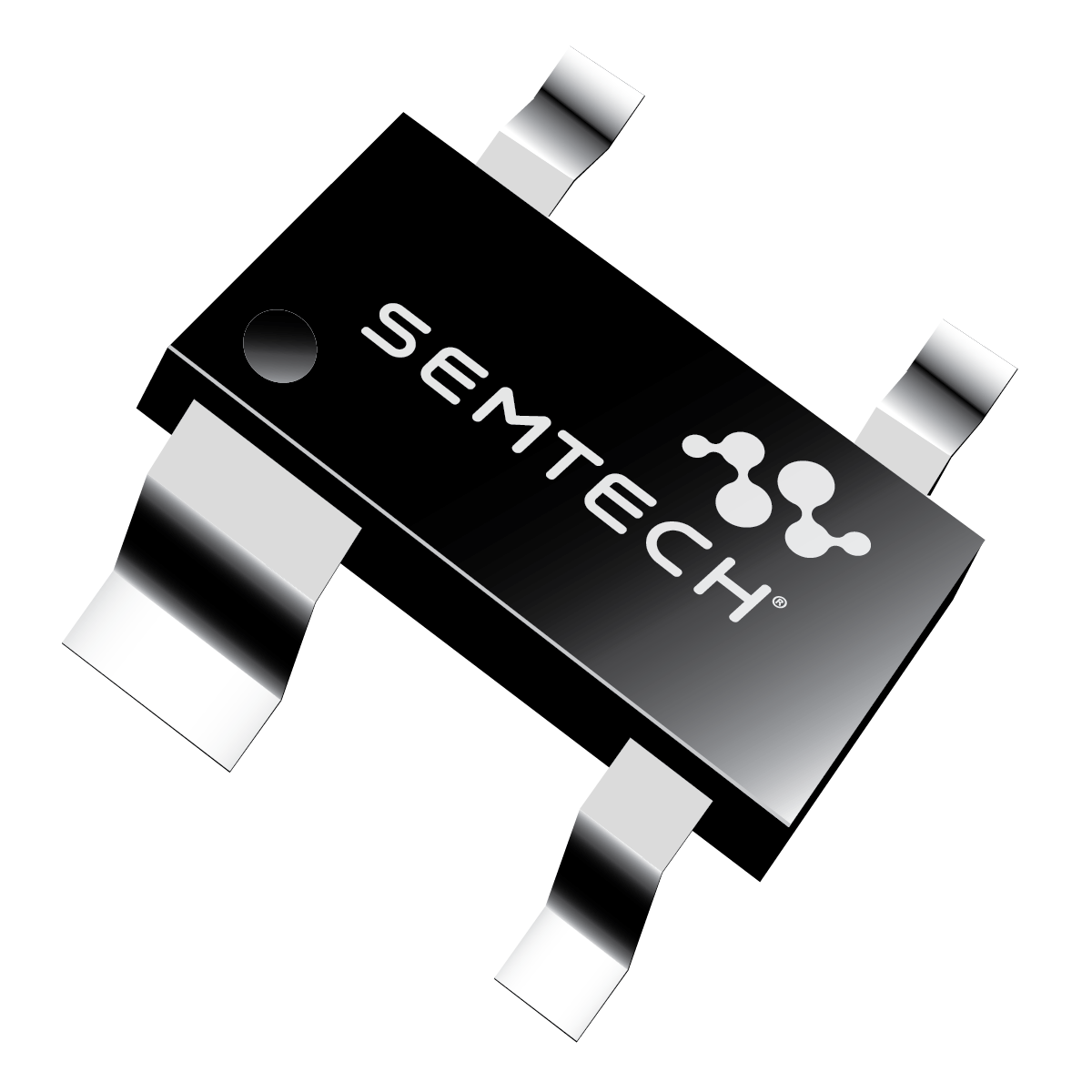

- SOT-143
- 3000 pcs. Tape & Reel
订购代码
- SR05.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
