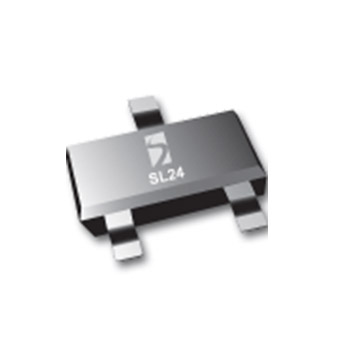

SL24
The SL series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events.
功能
- 24 V working voltage
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5（雷电）12 A (8/20 µs)
- Small package for use in portable electronics
- Two devices will protect one line
- Low capacitance for high-speed data lines
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- 高速数据线
- Cellular handsets AND accessories
- Universal serial bus (USB) port protection
- Portable instrumentation
- LAN/WAN equipment
- 外围设备
应用
封装
- SOT-23
- 3000 pcs. Tape & Reel
订购代码
- SL24.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
