RClamp7534P

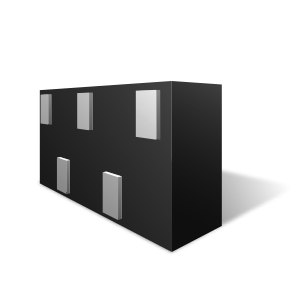

RClamp®7534P is a high performance TVS array aimed at simultaneously protecting 4 signal lines from overvoltage events caused by ESD, CDE (Cable Discharge Events) and EFT (electrical fast transients). RClamp7534P features an extremely low max capacitance of 0.19pF (Typical) and is designed to protect high speed interfaces such as HDMI 2.0, 10-gigabit Ethernet,and USB 3.0.
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±25kV (air), ±20kV (contact)
- IEC 61000-4-5 (Lightning) 4A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Protects four high-speed lines
- Low capacitance: 0.19pF Typical (I/O to Ground)
- 低 ESD 钳位电压
- Low dynamic resistance: 1.0 Ohm (Typ)
- 小漏电流
- 固态硅雪崩技术
- HDMI 2.0
- USB 3.1
- Display Port 1.2
- Thunderbolt
- 10GbE
- V-By-One
- MHL
应用
封装
- SGP2010N5
订购代码
- RClamp7534P.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant. 10,000 pcs. Tape & Reel.
