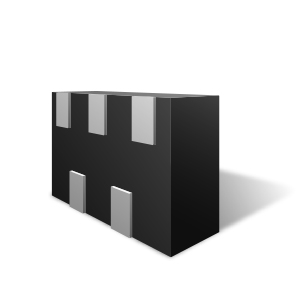

RClamp7524T
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects four high-speed lines
- Low capacitance: 0.60pF Maximum (I/O to Ground)
- 低 ESD 钳位电压
- Low dynamic resistance: 0.50 Ohms (Typ)
- 固态硅雪崩技术
- HDMI 1.3 and HDMI 1.4
- V-By-One
- USB 3.0
- MHL
- eDP
- LVDS Interfaces
- eSATA 接口
应用
封装
- SLP1308N5T
订购代码
- RClamp7524T.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
