概览

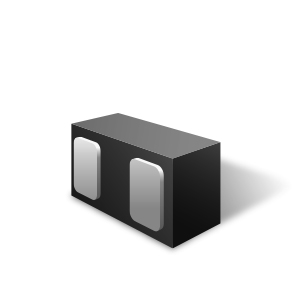

RClamp TVS diodes are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). They are designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers and other portable electronics. This device offers desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation.
功能
- High ESD withstands voltage: +/-17kV (contact) per IEC 61000-4-2 and +/- 24kV (air) per IEC 61000-4-2
- Ultra-small package
- Protects one data line
- 低 ESD 钳位电压
- Working voltage: 5V
- 低电容：最大 0.45pF
- 小漏电流
- Low dynamic resistance: 0.17 Ω (typ.)
- 固态硅雪崩技术
- Pb-free, Halogen-free, RoHS/WEEE-compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP5031ZA Datasheet | 2022-04-07 | | |
应用
- USB3.0
- USB Type-C
- MiPi/MDDI
- MHL
- FM antenna
- 可穿戴设备
