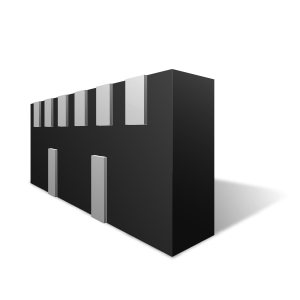

RClamp3655P
RailClamp® is a low capacitance TVS array designed to protect high speed data interfaces.
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects USB DP, DM, FM radio, and ID Pins to 5V
- Protects USB VBUS operating up to 28V
- Low capacitance (<1pF) on DP, DM, FM and ID Pins
- No insertion loss to 2.0GHz
- 小漏电流
- 钳位电压低
- Innovative package for easy pcb layout
- 固态硅雪崩技术
- uUSB Interfaces with FM radio Option
- USB OTG
应用
封装
- SLP3313P6
订购代码
- RClamp3655P.TCT - Lead Finish: NiPdAu, RoHS/WEEE Compliant
