RClamp3654P
RailClamp® is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Not Recommended for New Designs. See replacement RClamp3654PA
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns)

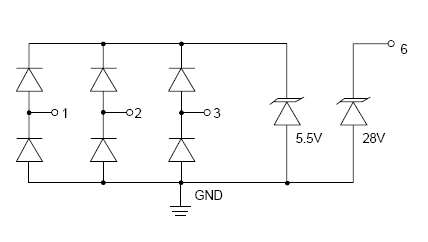

- Array of surge rated diodes with internal TVS Diode
- Small package (1.6 x 1.6mm) saves board space
- Protects USB DP, DM, and ID Pin operating up to 5.5V
- Protects USB VBus operating up to 28V
- Low capacitance (<1pF) on DP, DM, and ID Pins
- No insertion loss to 2.0GHz
- 小漏电流
- 钳位电压低
- Large ground pad for increased ESD performance
- 固态硅雪崩技术
- Lead-Free, RoHS/WEEE compliant
- USB 2.0
- USB OTG
应用
封装

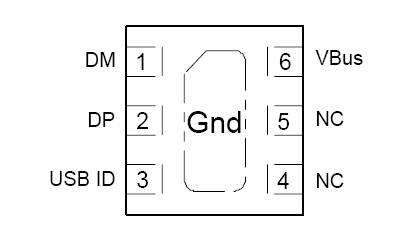

- SLP1616P6
- 3000 pcs tape and reel
订购代码
- RClamp3654P.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP3654P
产品描述
RAILCLAMP LOW CAPACITANCE TVS ARRAY
引脚数
6
封装类型
SLP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
镍钯金
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
声明和报告
IPC-1752-2
