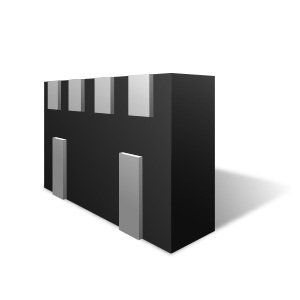

Semtech RClamp3624T
用于 uUSB 接口的 ESD 防护

RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
概览
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Flow-Through design for easy layout
- Protects USB DP, DM, and ID Pin operating to 5V
- Protects USB VBUS operating up to 28V
- Low capacitance (<1pF) on DP, DM, and ID Pins
- No insertion loss to 2.0GHz
- 小漏电流
- 钳位电压低
- 固态硅雪崩技术
应用
- USB 2.0
- USB OTG
封装
- SLP1710P4T
订购代码
- RClamp3624T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
