RClamp3361P

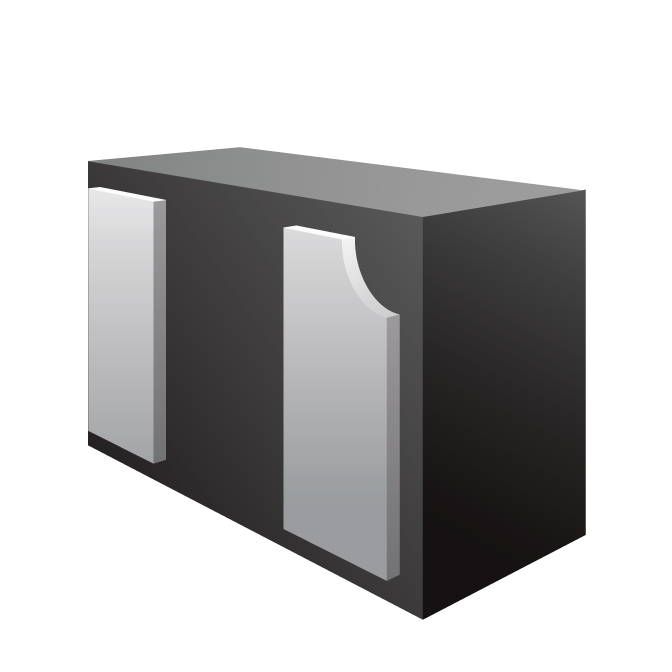

RClamp®3361P is an ultra-low capacitance electrostatic discharge (ESD) protection device specifically designed to protect high-speed Ethernet lines. It offers desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation. The device features high surge capability of 7A (tp = 8/20 μs).
功能
- ESD withstand voltage: ±15kV (air), ±12kV (contact) per IEC 61000-4-2
- High surge capability: 7A (tp = 8/20 μs, Rs = 2Ω) per IEC 61000-4-5
- 超低电容：0.2pF（典型值）
- Protects one high-speed data line
- Working voltage: ±3.3V
- Low reverse leakage current: 50nA max at VR=3.3V
- Low insertion loss: 0.39dB (typical) at 5GHz
- 运行带宽大：11.3GHz
- 固态硅雪崩技术
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- 2.5G/5G/10GbE
- USB 3.0 和 USB 3.1
- Thunderbolt
- HD-SDI
应用
封装
- 1.0 x 0.6 x 0.5mm - 15,000 pcs
订购代码
- RClamp3361P.TFT
Pb(Lead)-Free/RoHS-Green Info
Datasheets & Documentation
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
