RClamp3346P
RClamp®3346P 为高速数据接口提供 ESD 防护。其最大可承受 ±17kV 的 ESD 接触电压以及 ±20kV 的 符合 IEC 61000-4-2 的空气放电。RClamp3346P 专用于最大程度降低 ESD 峰值钳位电压和 TLP 钳位电压。
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±20kV（空气），±17kV（接触）
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- 保护六条高速线路
- 低电容：最大 0.65pF（I/O 到接地）
- 低 ESD 钳位电压
- 低动态电阻：0.15 欧姆（典型值）
- 经 AEC-Q100 认证
- 固态硅雪崩技术
- USB 3.0
- eSATA
- 显示器端口
- LVDS
应用
封装

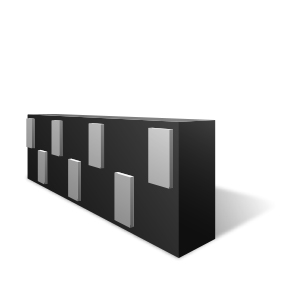

- SGP2708N7 7 引脚封装 (2.7 x 0.8 x 0.50mm)
订购代码
- RClamp3346P.TNT：无铅、无卤素且符合 RoHS/WEEE 标准，卷带包装
