RClamp3304P

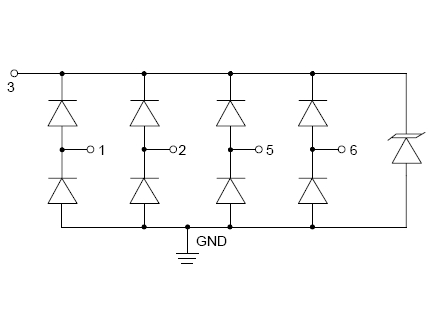

RailClamp is a low capacitance TVS array designed to
protect high speed data interfaces. This series has been
specifically designed to protect sensitive components
which are connected to data and transmission lines from
overvoltage caused by ESD (electrostatic discharge), CDE
(Cable Discharge Events), and EFT (electrical fast transients).
功能
- Transient protection for high-speed data lines to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns) - Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- 保护最多四条 I/O 线路
- Low capacitance (<0.8pF) for high-speed interfaces
- Minimal insertion loss to 3.0GHz
- Low operating voltage: 3.3V
- Low leakage current and clamping voltage
- 固态硅雪崩技术
- Multi Media Card (MMC) Interfaces
- SATA Interfaces
- SD Card Interfaces
- SIM Ports
- MDDI Ports
- MPPI Ports
应用
封装

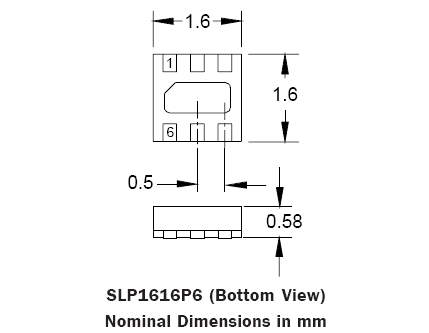

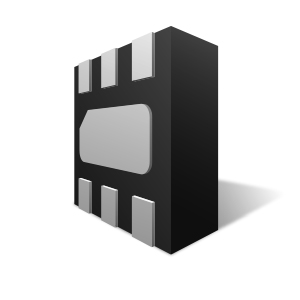

- SLP1616P6
- 3000 pcs. Tape & Reel
订购代码
- RClamp3304P.TCT
Pb(Lead)-Free/RoHS-Green Info
