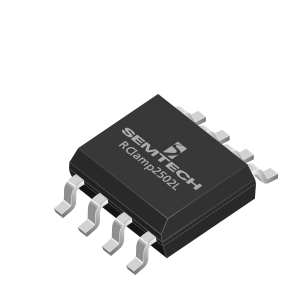

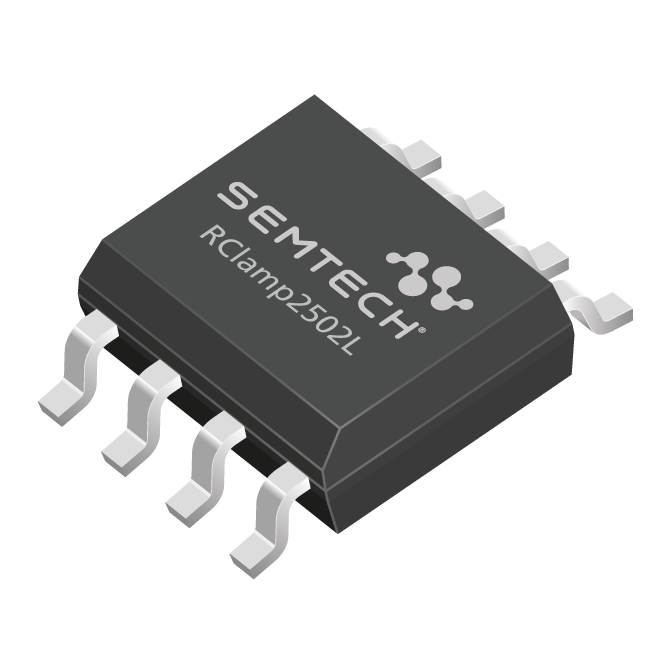

RClamp2502L
The RailClamp2502L is a low capacitance TVS array designed to protect data interfaces from electrostatic discharge (ESD), cable discharge events (CDE), electrical fast transients (EFT) and lightning surge. The combination of low clamping voltage, high surge capability and low loading capacitance makes the RClamp2502L an ideal solution for protecting Ethernet-based systems.
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV(空气),±8kV(接触)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 24A (1.2/50μs)
- Array of surge rated diodes with internal TVS Diode
- Protects up to two I/O lines
- Low capacitance (<5pF (Line-to-Line))
- High surge capability: 40A (tp=8/20μ)
- Low operating voltage: 2.5V
- Easy layout
- 固态硅雪崩技术
- 10/100/1000 Ethernet Interfaces
- CPE Equipment
- GPON Systems
- VoIP Phones
- Video Surveillance Systems
应用
封装
- SO-8
- 500 pcs. Tape & Reel
订购代码
- RClamp2502L.TBT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP2502L
产品描述
RAILCLAMP 2.5V TVS FOR Gibe APPLICATIONS
引脚数
5
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
Datasheets & Documentation
mySemtech
探索丰富的可下载资源和数据表,帮助原型制作和生产。
正在查找文档?
登录或注册 mySemtech,以获得限定的产品文档,并将文档添加到观察清单以获得更新提醒
