RClamp2451ZA
RailClamp® TVS 二极管是超低电容器件，可以保护灵敏电子器件免受 ESD、EFT 和 EOS 造成的损坏或闩锁效应。它们专用于手机、笔记本电脑和其他便携式电子产品等应用中的高速端口。这些器件具备电路板保护的理想特性，即响应时间快，工作电压和钳位电压低，且无器件退化。
功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准规范的 +/-14kV（接触）和 +/-18kV（空气）
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4
- Ultra-small 0201 package
- 保护一条高速数据线路
- 工作电压：+/- 24V
- 低电容：0.35pF（典型值）
- 低动态电阻：0.16 欧姆（典型值）
- 低 ESD 钳位电压
- 固态硅雪崩技术
- 近场通信 (NFC) 线
- 射频信号线
- 调频天线
应用
封装

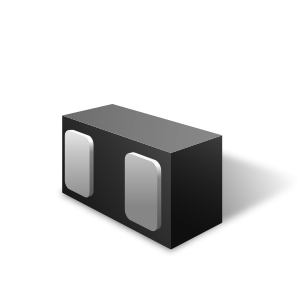

- SLP0603P2X3F：0.6 x 0.3 x 0.25mm
订购代码
- RClamp2451ZATFT：无铅、无卤素且符合 RoHS/WEEE 标准，15,000 颗。
