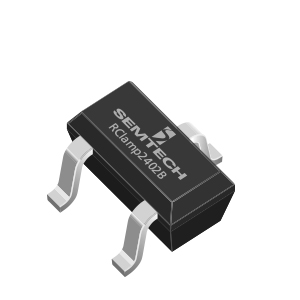

RClamp2402B
RailClamp 是超低电容 TVS 阵列，旨在保护高速数据接口。此系列专为保护连接到高速数据和传输线的敏感元件而设计，以防止 ESD（静电放电）、CDE（电缆放电事件）和 EFT（电气快速瞬变）导致的浪涌。
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Designed to replace polymer TVS
- Protects up to two I/O lines
- Ultra-Low Line-to-Line capacitance (<0.5pF Typical)
- No insertion loss to >3.0GHz
- Low profile (<1mm)
- Low leakage current and clamping voltage
- Low operating voltage: 24.0V
- 固态硅雪崩技术
- Lead-Free, RoHS and WEEE Compliant
- High-Definition Multimedia Interface (HDMI)
- USB 2.0 & Firewire Ports
- GaAs Photodetector Protection
- HBT Power Amp Protection
- Infiniband Transceiver Protection
应用

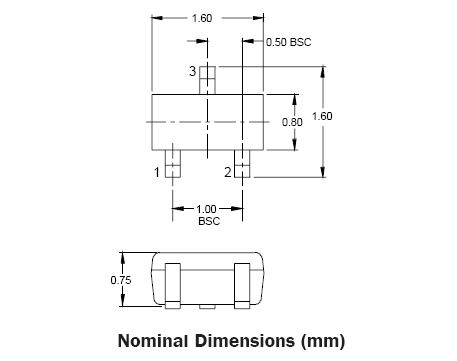

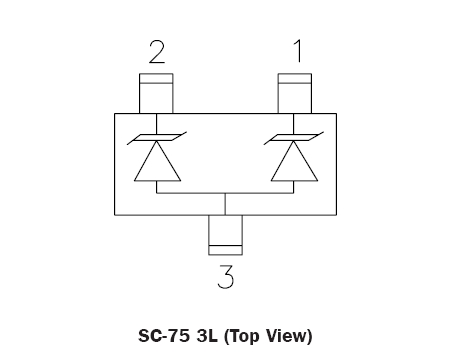

封装
- SC-75
- 3000 pcs.Tape & Reel
订购代码
- RClamp2402B.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
