RClamp1851ZA
RClamp® TVS 二极管可以保护灵敏电子器件免受 ESD 造成的损害或闩锁效应。它们专为替代便携式应用（例如手机、笔记本电脑和其他便携式电子产品）中的多层压敏电阻 (MLV) 而设计。此器件具备电路板保护的理想特性，即响应时间快，工作电压和钳位电压低，且无器件退化。
功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准的 +/-17kV（接触）和 +/-20kV（空气）
- Ultra-small package
- 保护一条高速数据线路
- 低 ESD 钳位电压
- 工作电压：18V
- 低电容：0.35pF（典型值）
- 小漏电流
- 极低动态电阻：0.16 欧姆（典型值）
- 固态硅雪崩技术
- 近场通信 (NFC) 线
- 射频信号线
- 蜂窝手机
- Tablets
- 调频天线
应用
封装

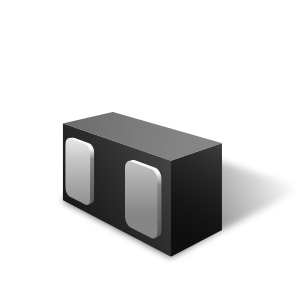

- SLP0603P2X3F：0.6 x 0.3 x 0.25mm
订购代码
- RClamp1851ZATFT：无铅、无卤素且符合 RoHS/WEEE 标准，15,000 颗。
